This FZ10 HV wing servo with low EMF anti-interference technology is the best servo for your RC jets and gliders like the F3F, F3B, F3J, F5B, and F5J. The outstanding torque and reactions can make your performance wonderful.
Features
- Low EMF Anti-interference Technology
- Extreme Torque and Excellent Speed
- Two Ball Bearings
- CNC Aluminium Case
- Ideal for RC Jets and Gliders
Specification
- Item: FZ10 Digital Metal Gear Servo
- Rated Voltage: DC7.4V
- Voltage Range: DC4.8V-8.4V
- Torque: 6.2Kgf.cm@4.8V, 7.5Kgf.cm@6.0V, 9.5Kgf.cm@7.4V, 10.8Kgf.cm@8.4V
- Speed: 0.16sec/60°@4.8V, 0.14sec/60°@6.0V, 0.12sec/60°@7.4V , 0.10sec/60°@8.4V
- Working Frequency: 1520us/333Hz

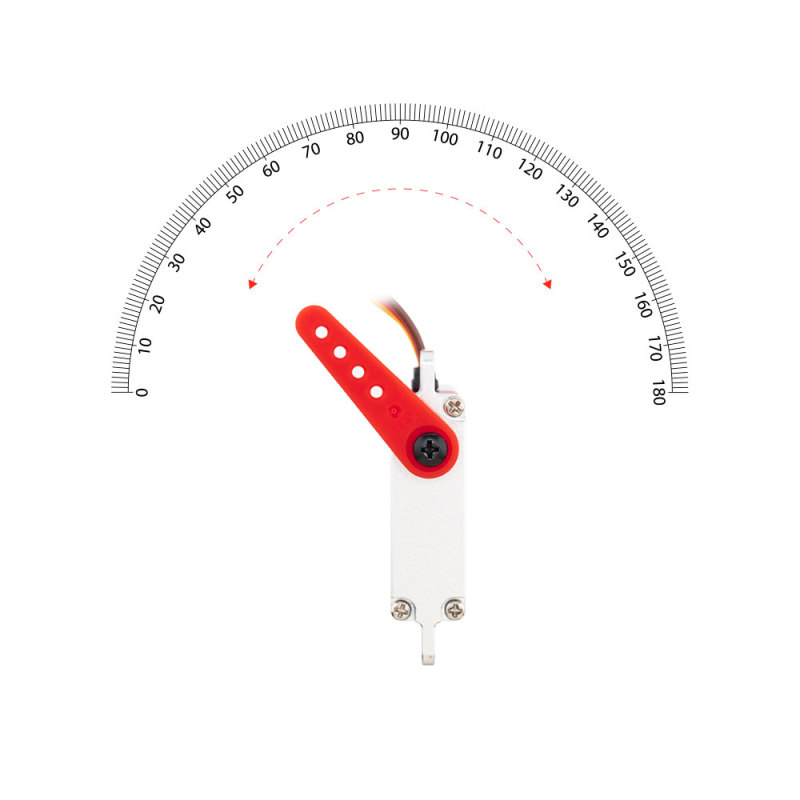

- Default Travel Angle: ±50° =100° Total
- Temperature Range: -10℃……+65℃
- Soft Start: Programmable
- Programmable: Yes
- Motor Type: Coreless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Potentiometer
- Ball Bearing: 2BB

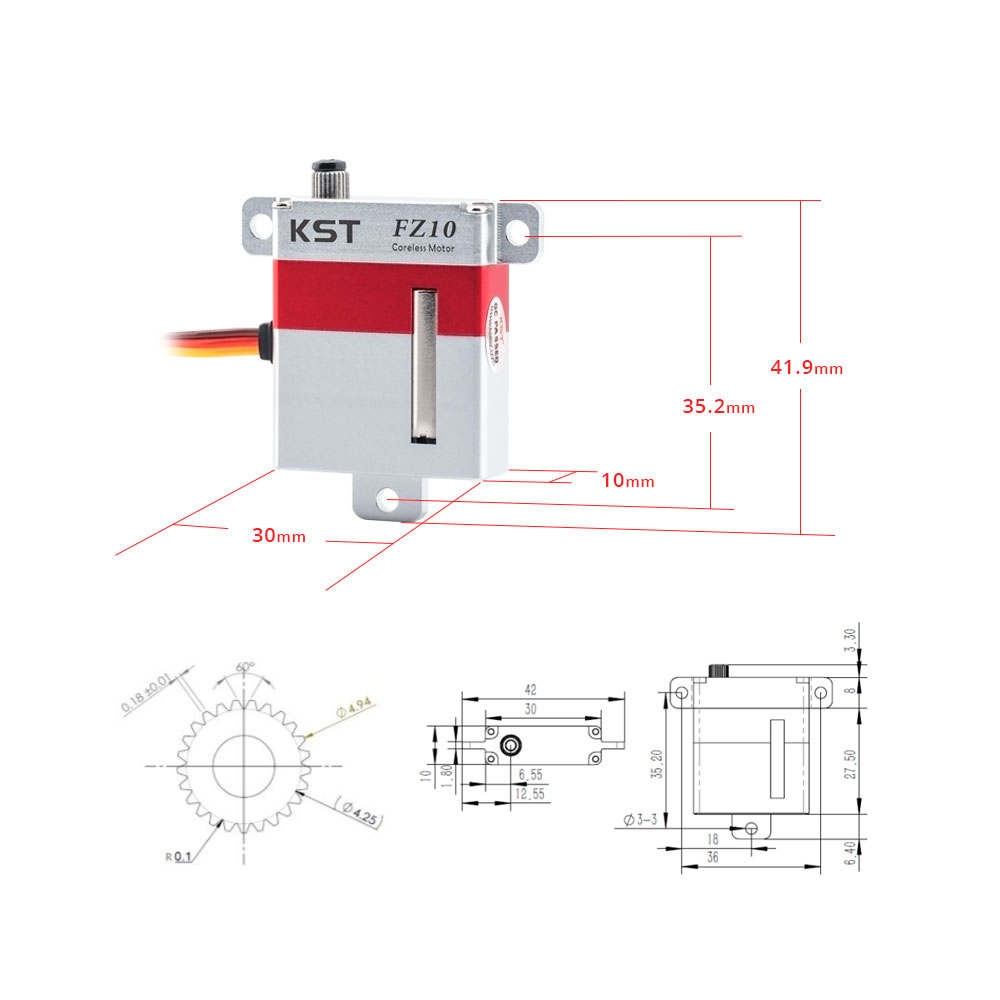

- Case Dimensions: 30*10*35.5mm ±0.2mm
- Weight: 28g±10%

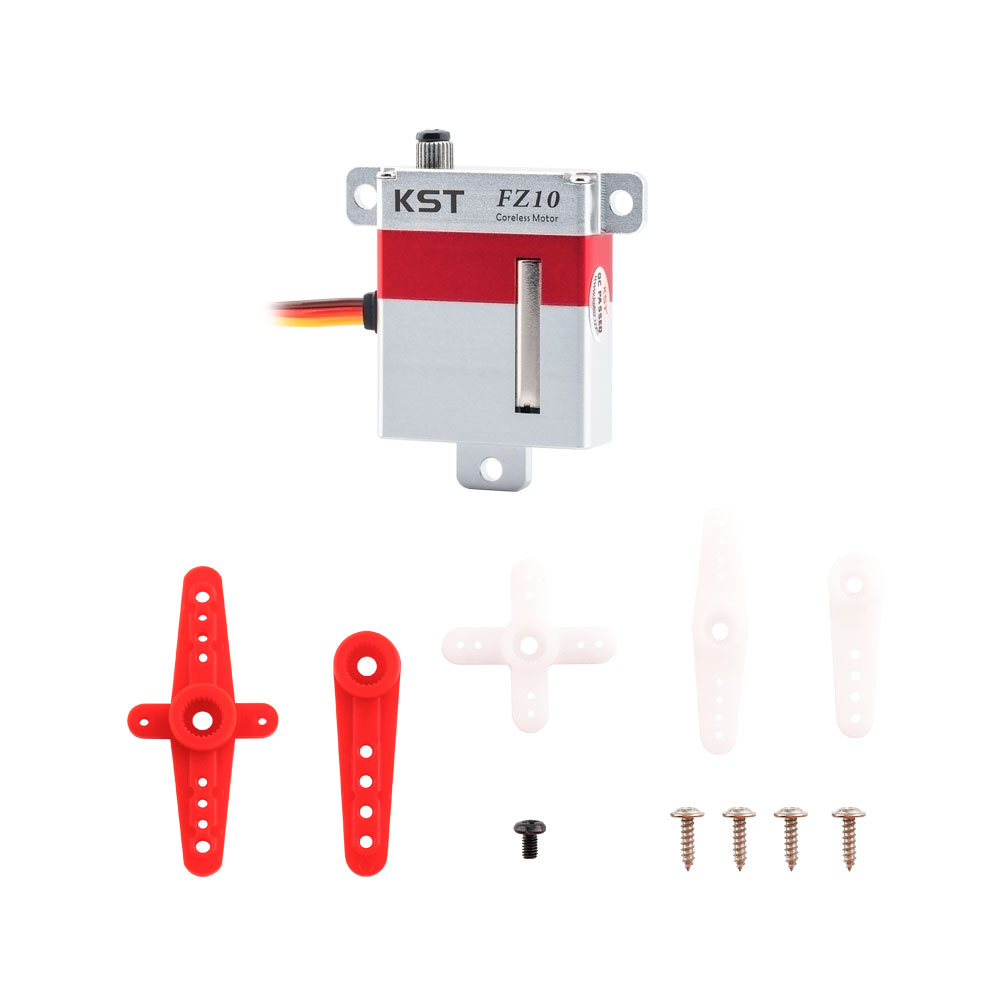

Package Including
- 1 * FZ10 Servo
- 1 pack of accessories
