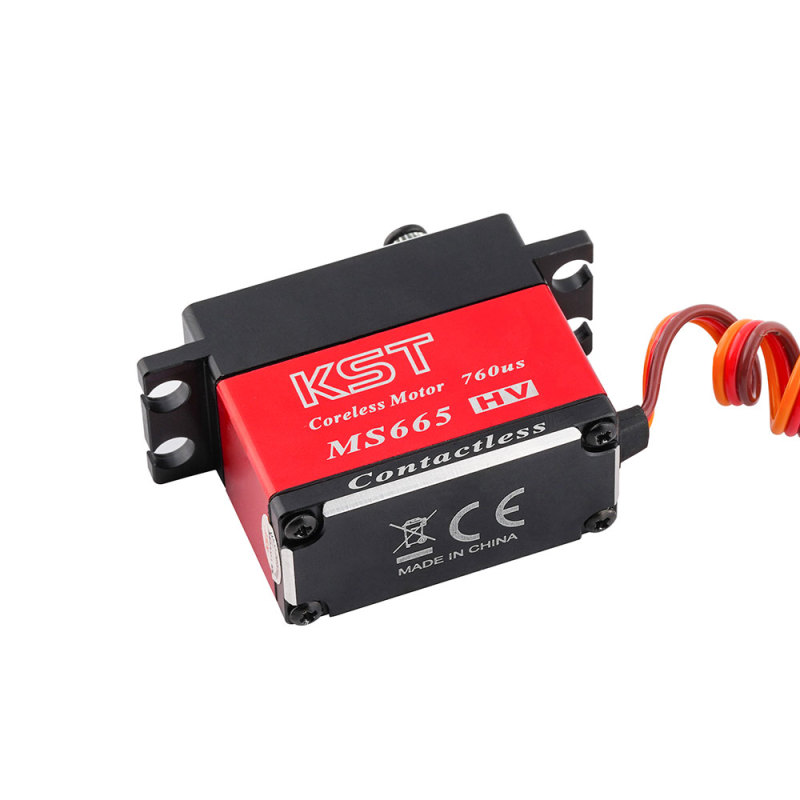

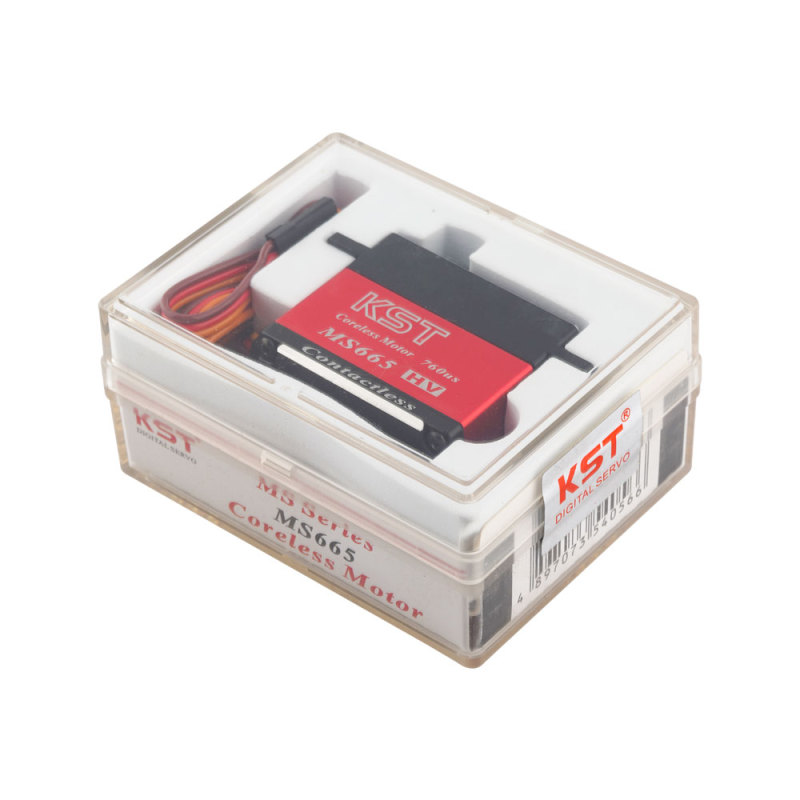

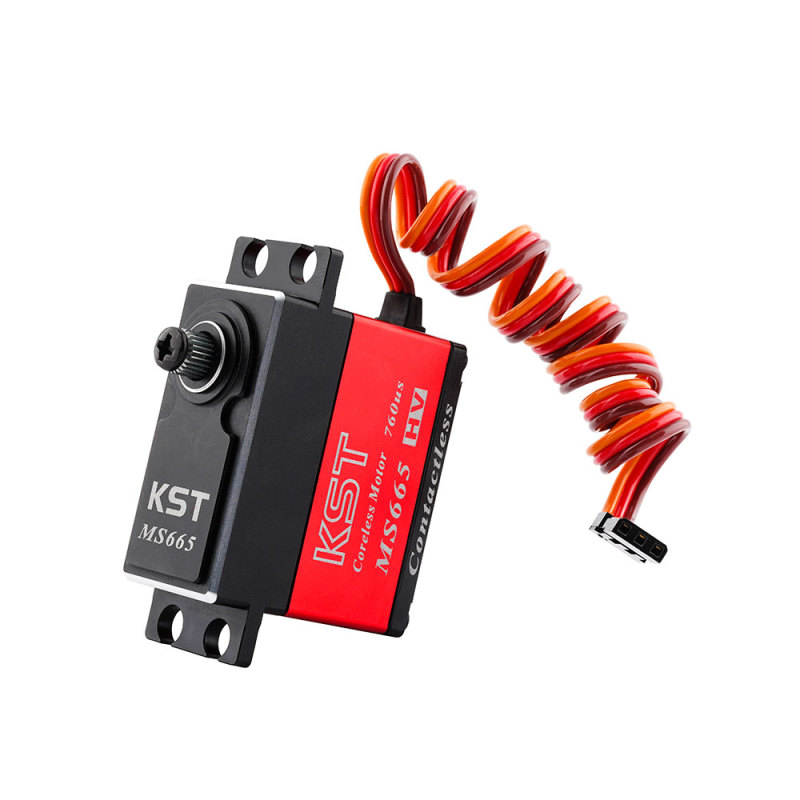

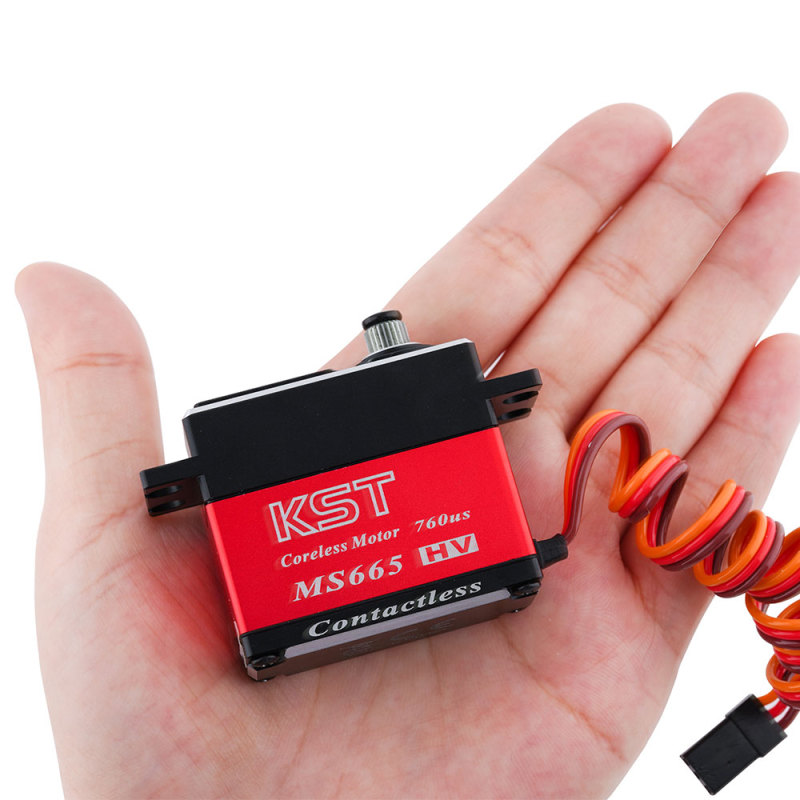

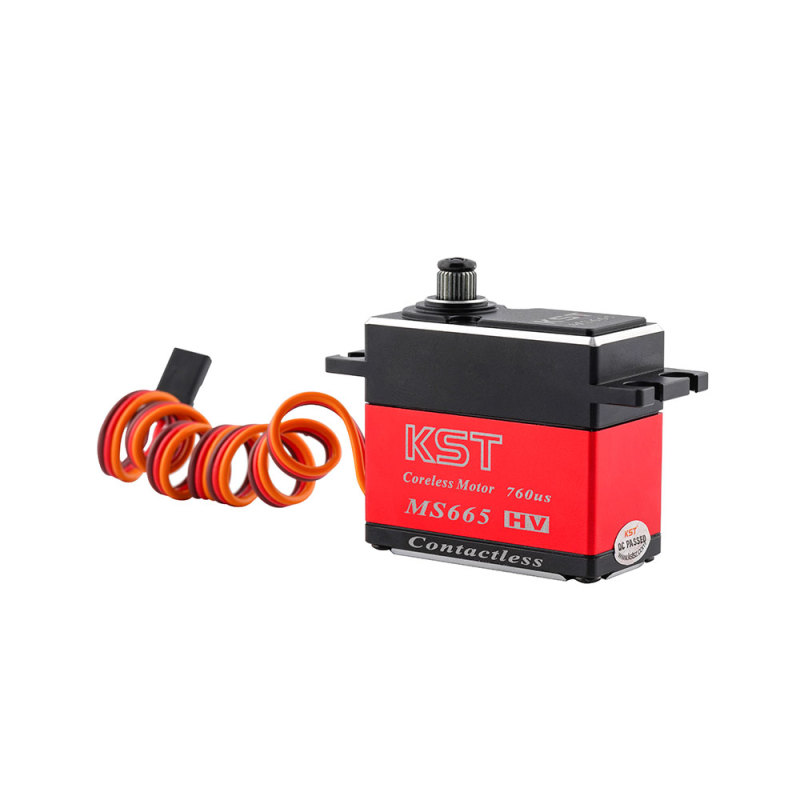

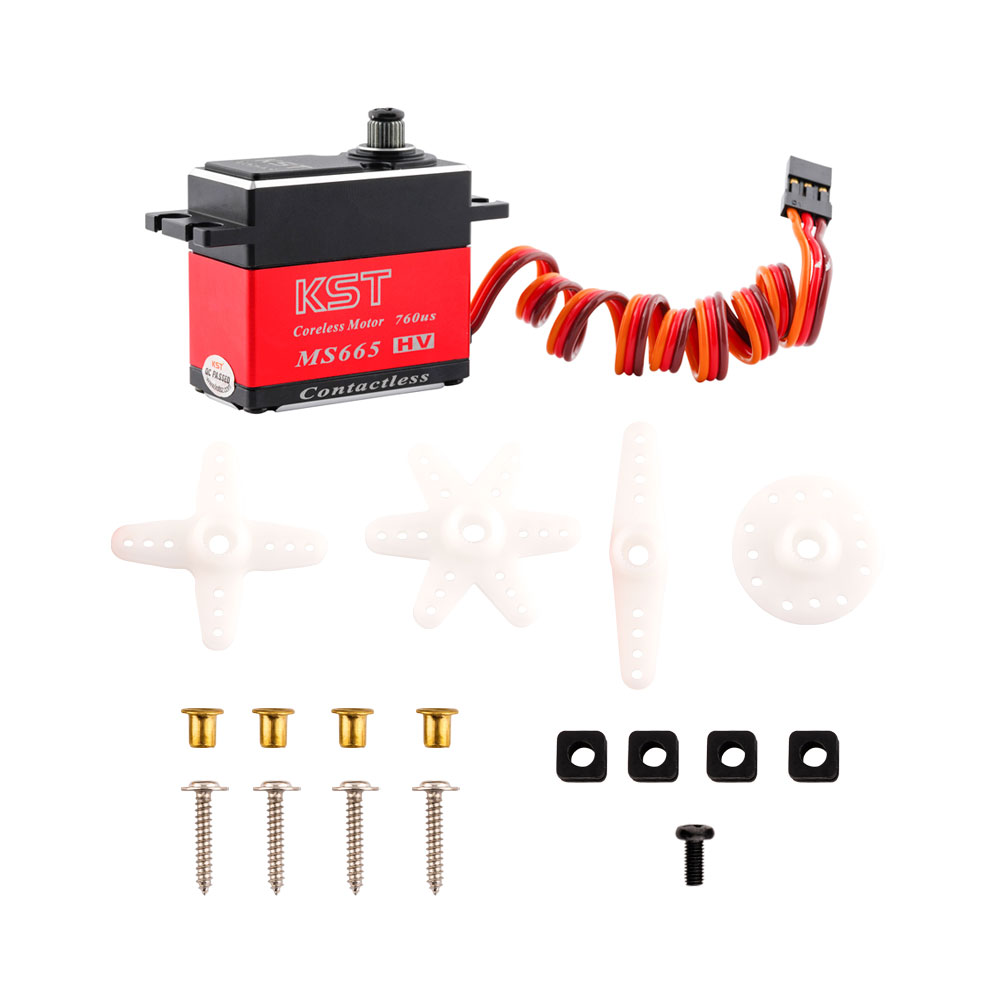

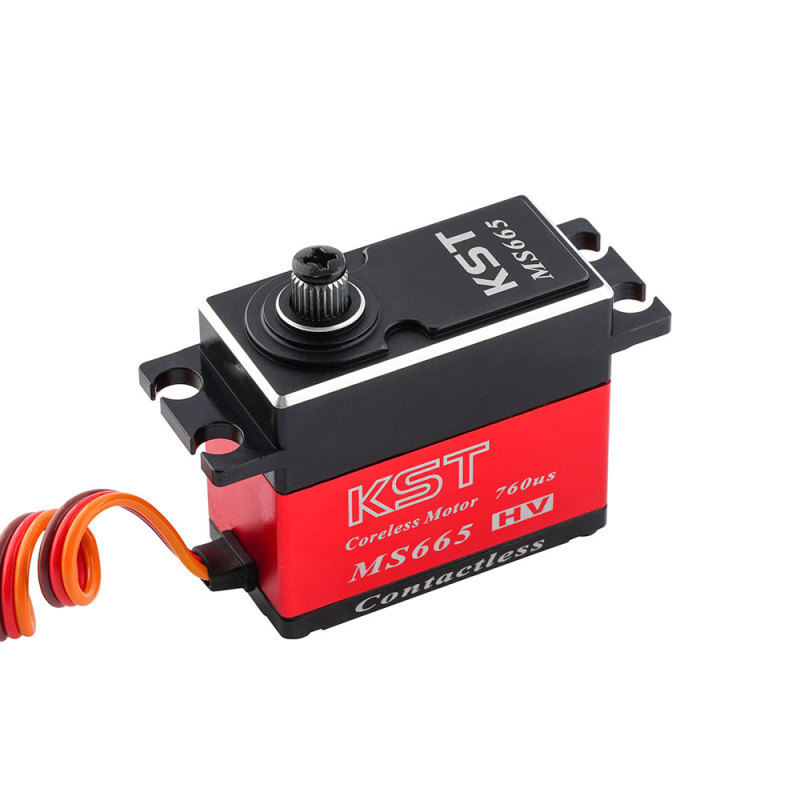

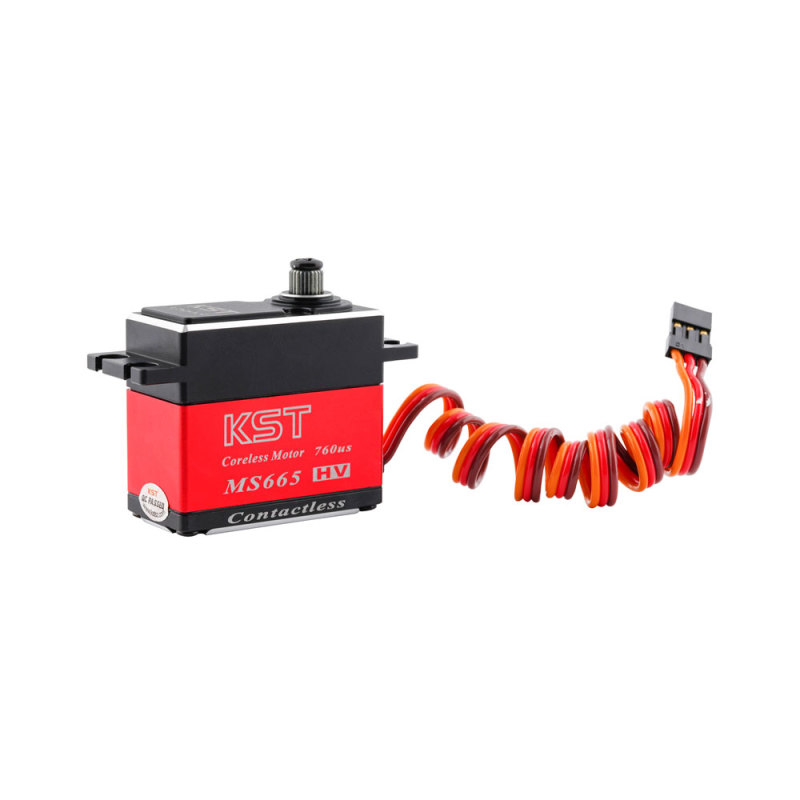

KST MS665 8.4V 7.5kg 0.04sec Coreless HV metal Gear Servo

SKU: BR0023.0019
This item is available by special order only. For pricing, MOQ and delivery information, please contact your sales representative.
$79.99 $59.99
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity
-
+
Add to Favorites (0)
  • KST MS665 8.4V 7.5kg 0.04sec Coreless HV metal Gear Servo Motor
  • KST MS665 8.4V 7.5kg 0.04sec Coreless HV metal Gear Servo Motor
  • KST MS665 8.4V 7.5kg 0.04sec Coreless HV metal Gear Servo Motor
  • KST MS665 8.4V 7.5kg 0.04sec Coreless HV metal Gear Servo Motor
  • KST MS665 8.4V 7.5kg 0.04sec Coreless HV metal Gear Servo Motor
  • KST MS665 8.4V 7.5kg 0.04sec Coreless HV metal Gear Servo Motor
  • KST MS665 8.4V 7.5kg 0.04sec Coreless HV metal Gear Servo Motor
  • KST MS665 8.4V 7.5kg 0.04sec Coreless HV metal Gear Servo Motor
  • KST MS665 8.4V 7.5kg 0.04sec Coreless HV metal Gear Servo Motor
  • KST MS665 8.4V 7.5kg 0.04sec Coreless HV metal Gear Servo Motor
  • KST MS665 8.4V 7.5kg 0.04sec Coreless HV metal Gear Servo Motor
  • KST MS665 8.4V 7.5kg 0.04sec Coreless HV metal Gear Servo Motor
  • KST MS665 8.4V 7.5kg 0.04sec Coreless HV metal Gear Servo Motor
  • KST MS665 8.4V 7.5kg 0.04sec Coreless HV metal Gear Servo Motor
  • KST MS665 8.4V 7.5kg 0.04sec Coreless HV metal Gear Servo Motor
  • KST MS665 8.4V 7.5kg 0.04sec Coreless HV metal Gear Servo Motor
  • KST MS665 8.4V 7.5kg 0.04sec Coreless HV metal Gear Servo Motor
  • KST MS665 8.4V 7.5kg 0.04sec Coreless HV metal Gear Servo Motor
  • KST MS665 8.4V 7.5kg 0.04sec Coreless HV metal Gear Servo Motor
  • KST MS665 8.4V 7.5kg 0.04sec Coreless HV metal Gear Servo Motor
1/1
  • KST MS665 8.4V 7.5kg 0.04sec Coreless HV metal Gear Servo Motor
  • KST MS665 8.4V 7.5kg 0.04sec Coreless HV metal Gear Servo Motor
  • KST MS665 8.4V 7.5kg 0.04sec Coreless HV metal Gear Servo Motor
  • KST MS665 8.4V 7.5kg 0.04sec Coreless HV metal Gear Servo Motor
  • KST MS665 8.4V 7.5kg 0.04sec Coreless HV metal Gear Servo Motor
  • KST MS665 8.4V 7.5kg 0.04sec Coreless HV metal Gear Servo Motor
  • KST MS665 8.4V 7.5kg 0.04sec Coreless HV metal Gear Servo Motor
  • KST MS665 8.4V 7.5kg 0.04sec Coreless HV metal Gear Servo Motor
  • KST MS665 8.4V 7.5kg 0.04sec Coreless HV metal Gear Servo Motor
  • KST MS665 8.4V 7.5kg 0.04sec Coreless HV metal Gear Servo Motor
  • Description
KST Servos are renowned for Quality at realistic prices. From Hobby helicopters and gliders to Industrial and UAV applications KST servos have earnt a reputation for performance even under the most demanding conditions. Whether you need to win your next competition event, power a mission critical UAV or operate industrial grade machinery or robotics KST has a solution for you. Talk to our sales team today, OEM and ODM services are also available for custom installations.

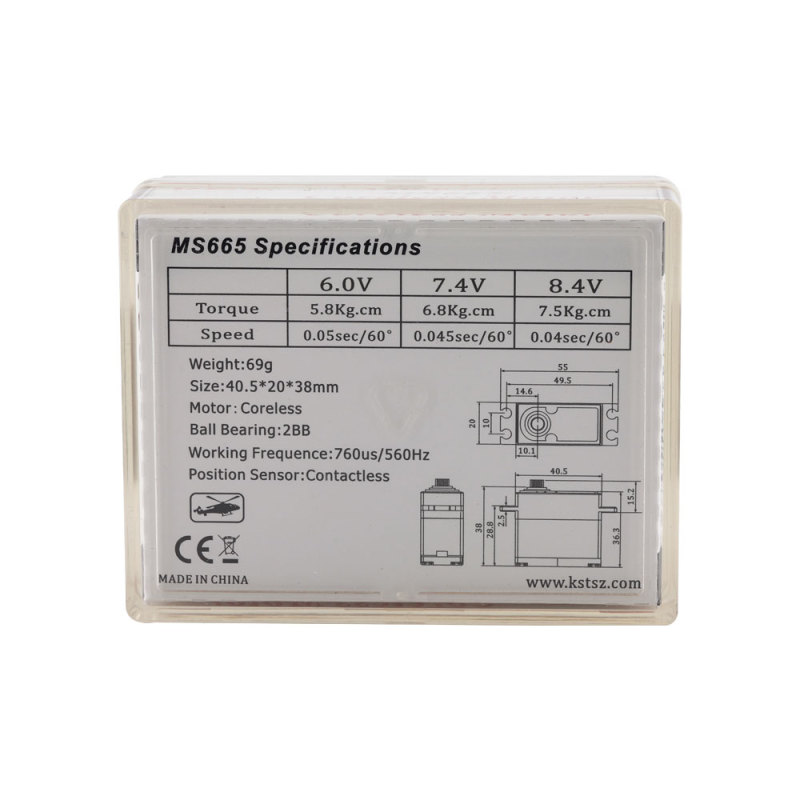

Specs:
Operation Voltage: DC6.0V- 8.4V
Torque: 5.8Kg.cm @ 6.0V
6.8Kg.cm @ 7.4V
7.5Kg.cm @ 8.4V
Speed: 0.05sec/60° @ 6.0V
0.045sec/60° @ 7.4V
0.04sec/60° @ 8.4V
Size:40.5*20*38mm
Working Frequence:760us/560Hz
Weight:69g
Motor: Coreless
Position sensor: Contactless
Ball Bearing:2BB


We can build servos with features like these and more!
Torque ranging from 2kg*cm to 700kg*cm
Travel speeds from 0.03s to 0.5s
Travel angles: from 40deg to 360deg
Communication protocols such as TTL. RS232, i2C, RS485 or PWM
Servo positioning and current feedback
Gear materials from plastics to titanium
Voltage ranges are also customizable from 4.8v to 28v
Size, Shape and design can be customized to your needs
A variety or motor options such as brushed, coreless & brushless
We can offer Potentiometer or magnetic induction control

Potential Applications.
1. Electric lock (anti-heft door lock servo)
2. Luggage case lock servo
3. Washing machine safety mechanism servo
4. Water/gas valve control Servo
5. Smart lamp Switch Servo
6. Camera gimbal control servo
7. UAV heavy duty servo
8. Servo Release Servo Drop
9. Curtain Servo
10. Automatic Perfume and liquids Sprayer Servo
11. Smart bike gear change servo
12. Electric car mirror servo
13. Car seat adjustment servo
14. Car window winding servo
15. Medical equipment servo
16. safety lock servo
17. Robot servo
18. Wheel servo
19. Robot arm servo
