KST MS725 V8.0 8.4V 20kg 0.07sec Contactless HV Digital Metal Gear Servo

SKU: BR0023.0161
This item is available by special order only. For pricing, MOQ and delivery information, please contact your sales representative.
$79.99 $59.99
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity
-
+
Add to Favorites (0)
  • KST MS725 V8.0 8.4V 20kg 0.07sec Contactless HV Digital Metal Gear Servo
  • KST MS725 V8.0 8.4V 20kg 0.07sec Contactless HV Digital Metal Gear Servo
  • KST MS725 V8.0 8.4V 20kg 0.07sec Contactless HV Digital Metal Gear Servo
  • KST MS725 V8.0 8.4V 20kg 0.07sec Contactless HV Digital Metal Gear Servo
  • KST MS725 V8.0 8.4V 20kg 0.07sec Contactless HV Digital Metal Gear Servo
  • KST MS725 V8.0 8.4V 20kg 0.07sec Contactless HV Digital Metal Gear Servo
  • KST MS725 V8.0 8.4V 20kg 0.07sec Contactless HV Digital Metal Gear Servo
  • KST MS725 V8.0 8.4V 20kg 0.07sec Contactless HV Digital Metal Gear Servo
  • KST MS725 V8.0 8.4V 20kg 0.07sec Contactless HV Digital Metal Gear Servo
  • KST MS725 V8.0 8.4V 20kg 0.07sec Contactless HV Digital Metal Gear Servo
  • KST MS725 V8.0 8.4V 20kg 0.07sec Contactless HV Digital Metal Gear Servo
  • KST MS725 V8.0 8.4V 20kg 0.07sec Contactless HV Digital Metal Gear Servo
  • KST MS725 V8.0 8.4V 20kg 0.07sec Contactless HV Digital Metal Gear Servo
  • KST MS725 V8.0 8.4V 20kg 0.07sec Contactless HV Digital Metal Gear Servo
  • KST MS725 V8.0 8.4V 20kg 0.07sec Contactless HV Digital Metal Gear Servo
  • KST MS725 V8.0 8.4V 20kg 0.07sec Contactless HV Digital Metal Gear Servo
1/1
  • KST MS725 V8.0 8.4V 20kg 0.07sec Contactless HV Digital Metal Gear Servo
  • KST MS725 V8.0 8.4V 20kg 0.07sec Contactless HV Digital Metal Gear Servo
  • KST MS725 V8.0 8.4V 20kg 0.07sec Contactless HV Digital Metal Gear Servo
  • KST MS725 V8.0 8.4V 20kg 0.07sec Contactless HV Digital Metal Gear Servo
  • KST MS725 V8.0 8.4V 20kg 0.07sec Contactless HV Digital Metal Gear Servo
  • KST MS725 V8.0 8.4V 20kg 0.07sec Contactless HV Digital Metal Gear Servo
  • KST MS725 V8.0 8.4V 20kg 0.07sec Contactless HV Digital Metal Gear Servo
  • KST MS725 V8.0 8.4V 20kg 0.07sec Contactless HV Digital Metal Gear Servo
  • Description
The MS725 V8.0 HV Digital Coreless Servo is designed for 550 & 700 class RC helicopters, delivering up to 20 kgf.cm torque and a fast 0.07sec/60° response. Featuring a coreless motor, dual ball bearings, hardened steel gears, and a contactless hall sensor for durability and smooth operation. With programmable travel angle and soft start, CNC aluminium alloy case for efficient heat dissipation. The MS725 V8.0 is perfect for high-performance flying.

Features
  • High Torque & Exceptional Speed
  • Large Default Travel Angle (programmable)
  • Dual Ball Bearings
  • High Performance Coreless DC Motor
  • Contactless Hall Sensor
  • Hardened Steel Gear
  • Ideal for 550 & 700 Size RC Helicopter

Specs:
  • Item: MS725 V8.0 Servo
  • Rated Voltage: DC7.4V
  • Voltage Range: DC6.0V-8.4V
  • Stalling Torque: 15Kgf.cm@6.0V, 18Kgf.cm@7.4V, 20Kgf.cm@8.4V
  • No-load Speed: 0.09sec/60°@6.0V, 0.08sec/60°@7.4V, 0.07sec/60°@8.4V
  • Working Frequency: 1520μs/333Hz
  • Default Travel Angle: ±100°=200° Total
  • Temperature Range: -10℃……+65℃
  • Soft Start: Programmable
  • Programmable: Yes
  • Case Material: Aluminium Alloy
  • Motor Type: Coreless DC Motor
  • Gear Set Material: Hardened Steel
  • Position Sensor: Contactless
  • Ball Bearing: 2BB

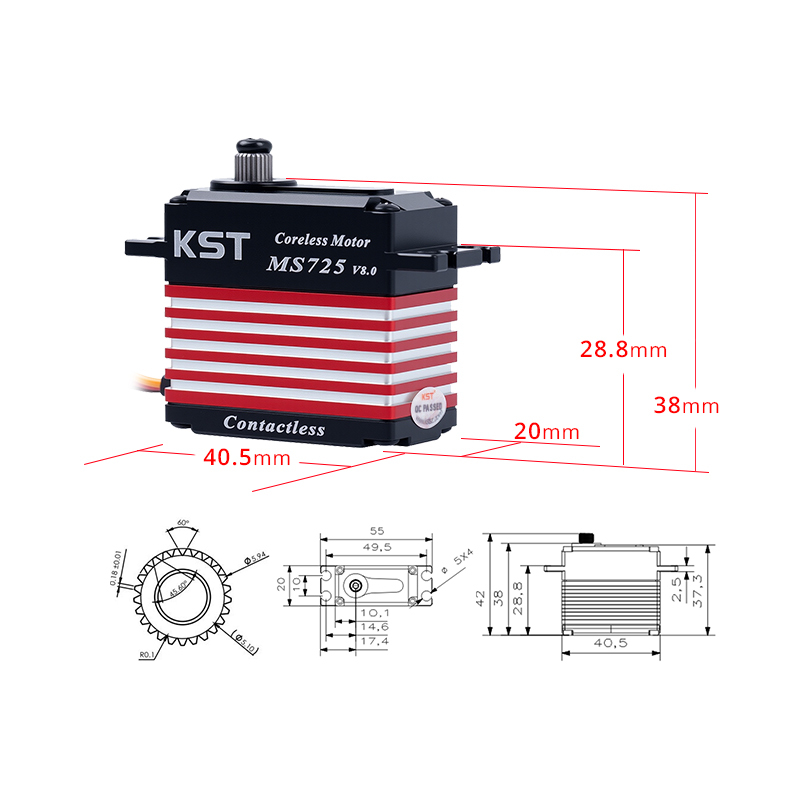

  • Case Dimensions: 40.5*20*38mm±0.2mm
  • Weight: 70g±10%
