KST - X08H V6.0 Servo Metal Gear Digital 0.09sec Micro Glider 2.8kg Servo

KST's new tiny alloy servo, the X08H is just 8mm wide and weighs just 8 grams, but it packs a real punch!

The X08H servo was based on their very popular 245 series, but they pushed the envelope even further. You get a tiny 8mm wide servo that can operate on a wide voltage range and produce up to 2.8kg of torque! That is very impressive, especially considering they weigh less than 9 grams. As we all know, it does no good if the gears are not accurate or tough, well, these are very accurate and very robust. The servo is now programmable with the KST Tool Card #5 (sold separately) to adjust the endpoints, center, and direction for the perfect installations. Ideal for DLG use, but also very capable in larger planes.

Features

• Compact and lightweight design
• Excellent torque and speed
• Designed for high-performance RC Gliders
• Excellent heat dissipation
• Programmable
• Support soft start

Specification

• Item: X08H V6.0 Micro Servo
• Rated Voltage: DC7.4V
• Voltage Range: DC3.8V-8.4V
• Torque: 1.4kg.cm@3.8V, 2.2kg.cm@6.0V, 2.8kg.cm@8.4V
• Speed: 0.18sec/60°@3.8V, 0.15sec/60°@6.0V, 0.09sec/60°@8.4V
• Working Frequency: 1520μs/333Hz
• Default Travel Angle: ±60° = 120° Total
• Temperature Range: -10℃……+65℃
• Soft Start: Yes
• Programmable: Yes
• Case Material: Aluminum Alloy
• Motor Type: Coreless DC Motor
• Gear Set Material: Hardened Steel
• Position Sensor: Potentiometer

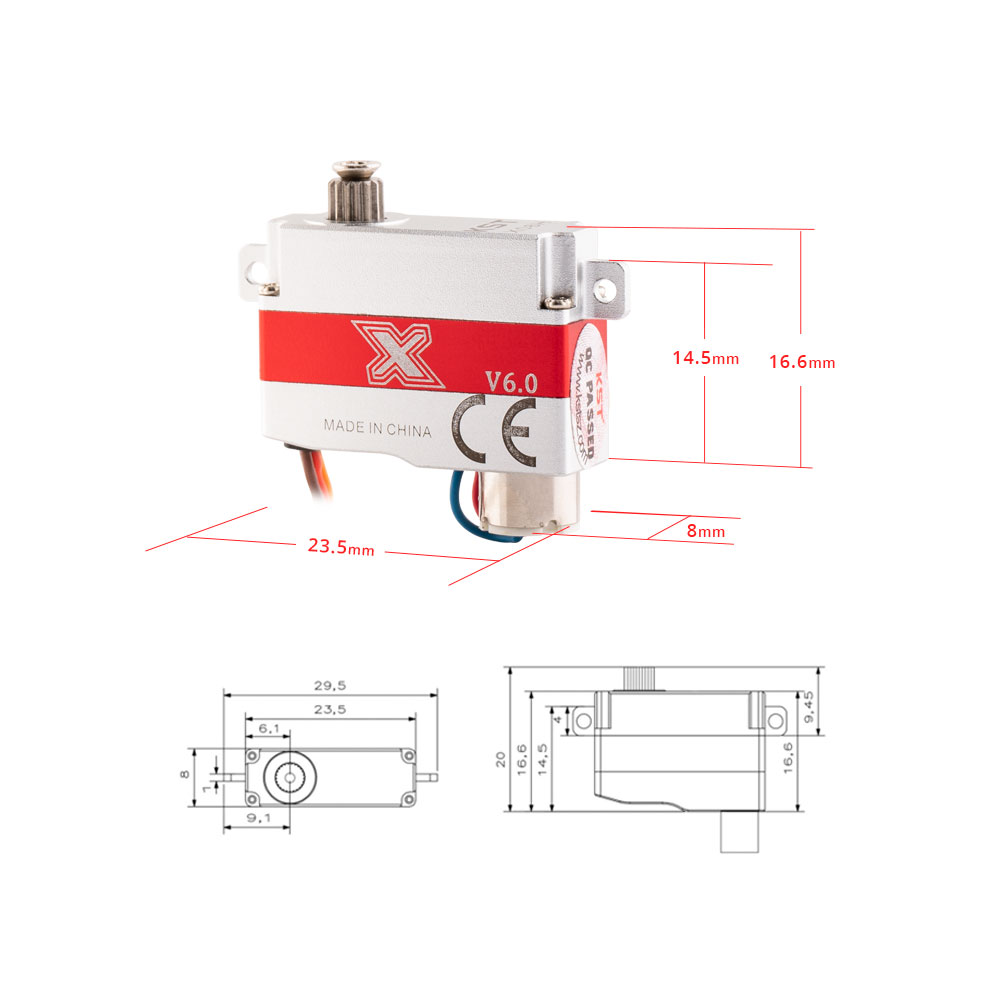

• Case Dimensions: 23.5*8*16.8mm±0.2mm
• Weight: 8g±10%

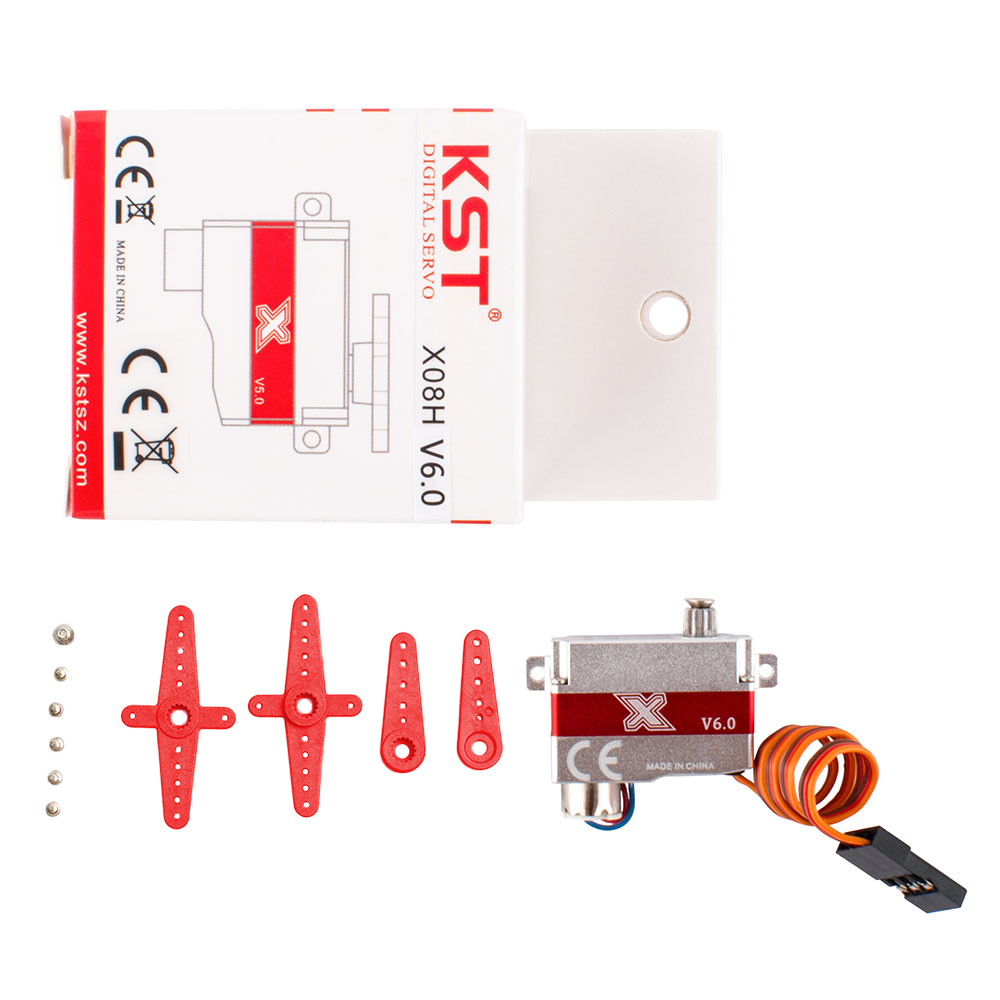

Package Including

• 1 * X08H V6.0 Micro Servo
• 3 * Plastic Servo Horn
• 4 * Mounting Screw
• 1 * Servo Horn Screw
