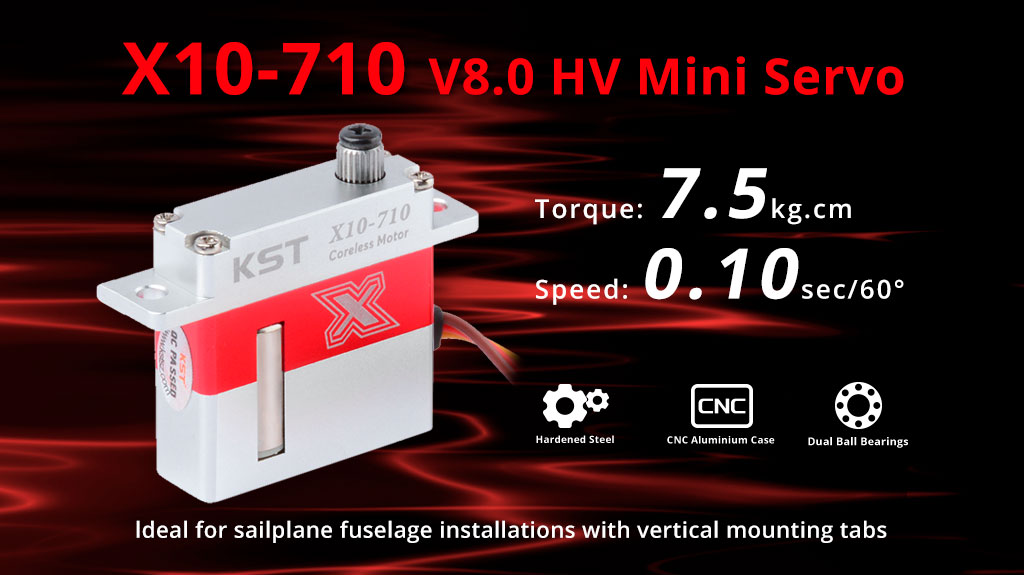

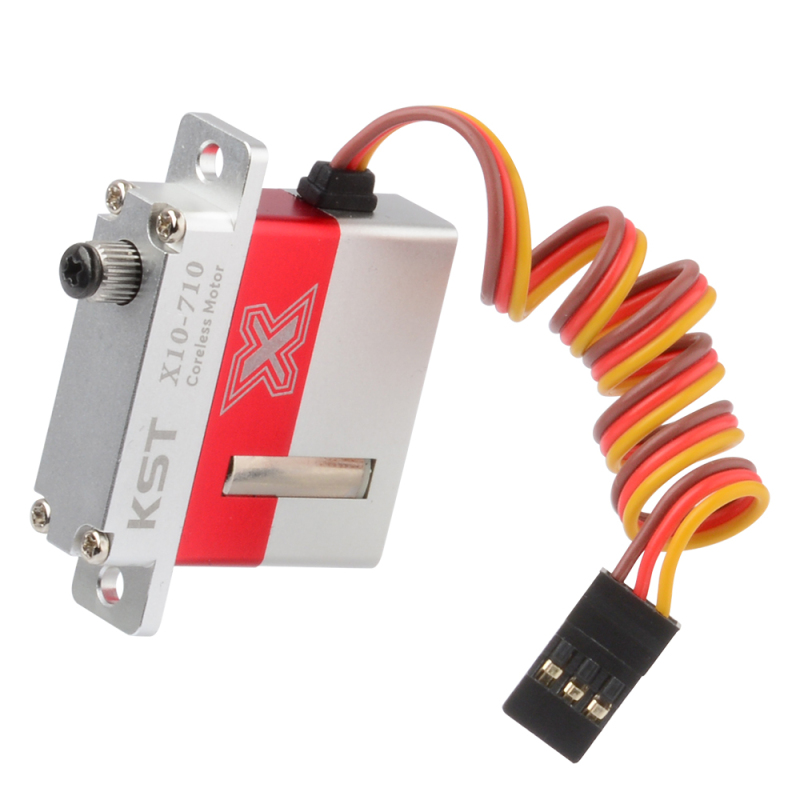

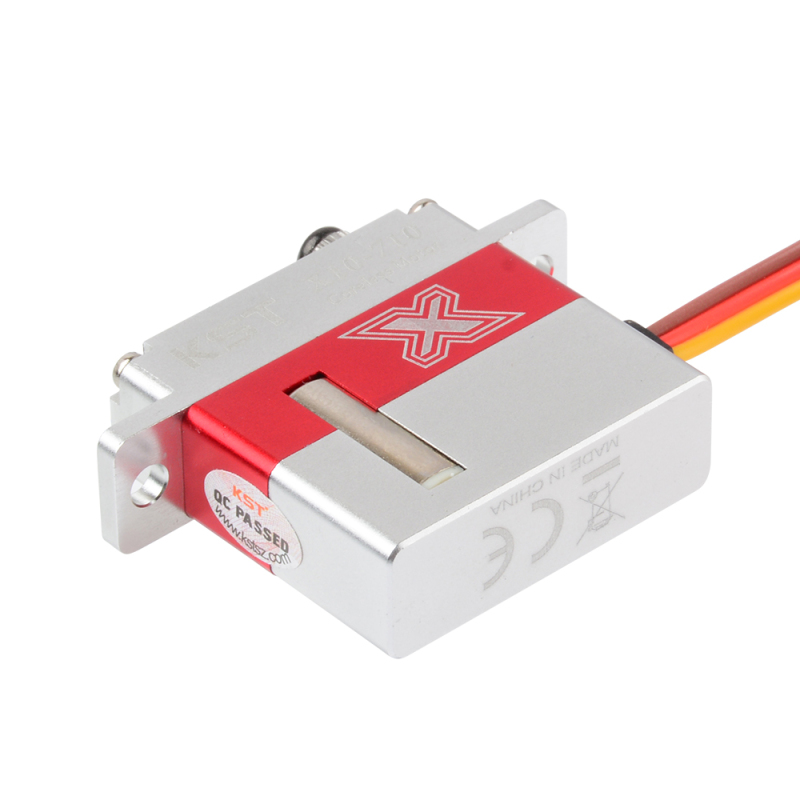

KST X10-710 7.5kg 0.10sec HV Slim Servo

X10-710 V8.0 servo is a high and medium-voltage version of the KST DS145MG-sized servo. It has normal mounting lugs making it ideal for mounting in a fuselage. With only slightly less torque than the larger MKS HV6130H it is excellent value for money. Features with a brilliant 7.5kgf.cm torque and fast 0.10sec/60° speed at 8.4V with fantastic precision and reliability.

The KST X10-710 V8 has a hardened steel drive train and a coreless motor capable of running all the way from 4.8V to 8.4V (4S NiMH to 2S LiPo) making these servos ideal for electric-powered models (most ESCs output 5.5V) as well as most gliders.

Features

• Compact and Lightweight Design
• Extreme Torque and Excellent Speed
• Programmable
• Excellent Heat Dissipation
• CNC Aluminum Case

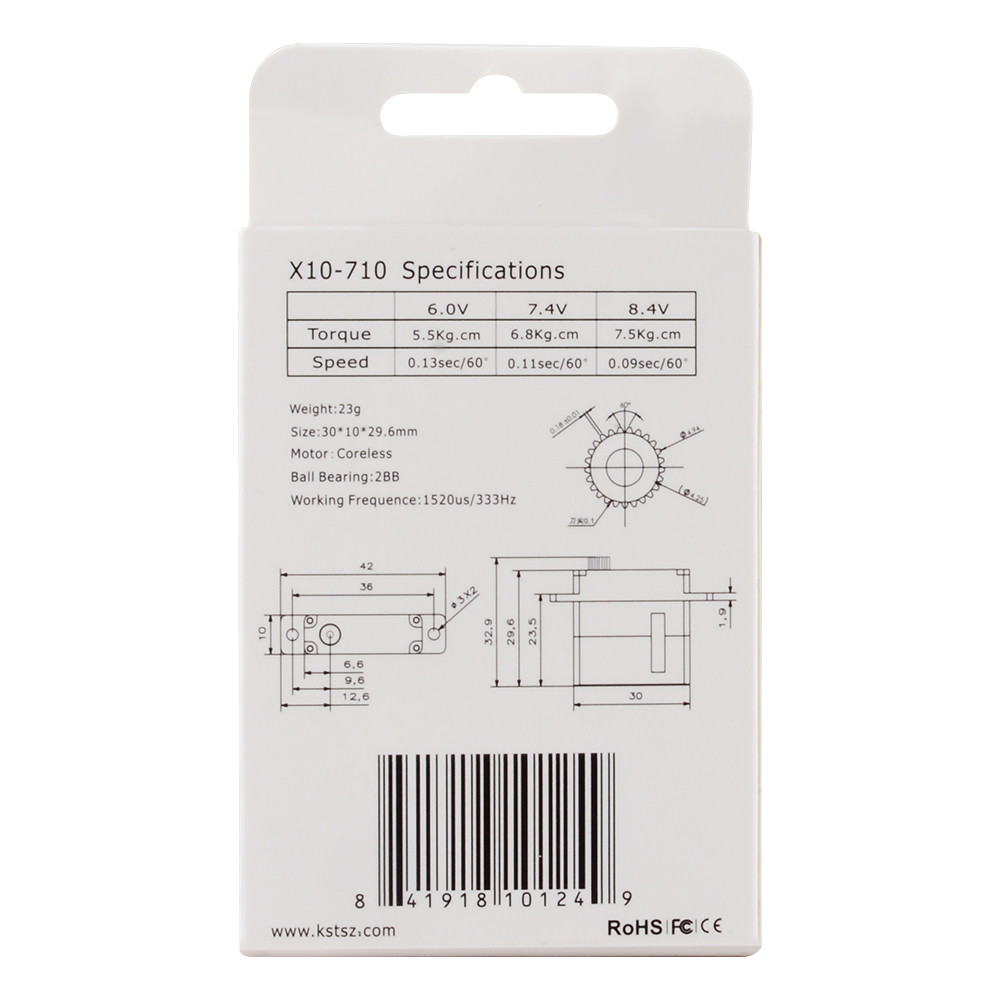

Specification

• Item: X10-710 V8.0 Mini Servo
• Operation Voltage(rated): DC7.4V

• Operation Voltage Range: DC4.8V-8.4V
• Torque: 4.5Kg.cm@4.8V / 5.5Kg.cm@6.0V / 6.8Kg.cm@7.4V / 7.5Kg.cm@8.4V
• Speed: 0.16sec/60°@4.8V / 0.14sec/60°@6.0V / 0.12sec/60°@7.4V / 0.10sec/60°@8.4V

• Working Frequency 1520μs/333Hz
• Travel Angle: ±50° = 100° Total

• Operating Temperature Range: -10℃ to +65℃
• Soft Start: Programmable
• Programmable: Yes
• Case Material: Aluminum Alloy
• Motor Type: Coreless DC Motor
• Gear Set Material: Hardened Steel
• Position Sensor: Potentiometer

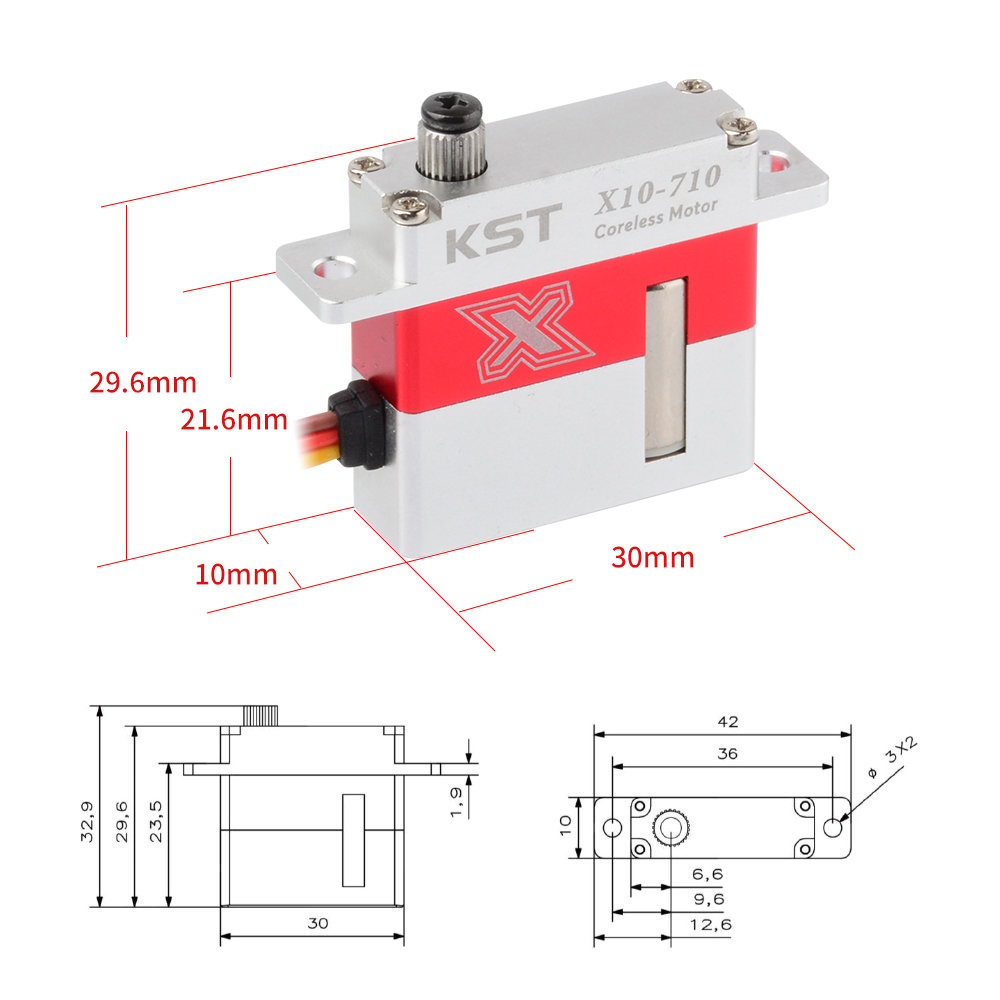

• Case Dimensions: 30mm*10mm*29.6mm±0.2mm
• Bearing: 2BB
• Weight: 23g±10%
