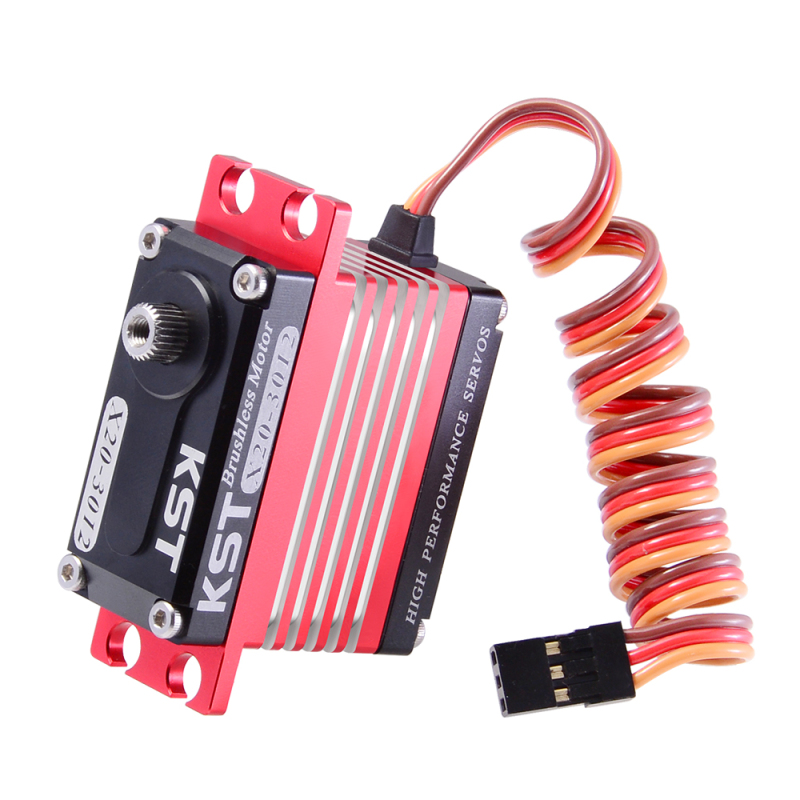

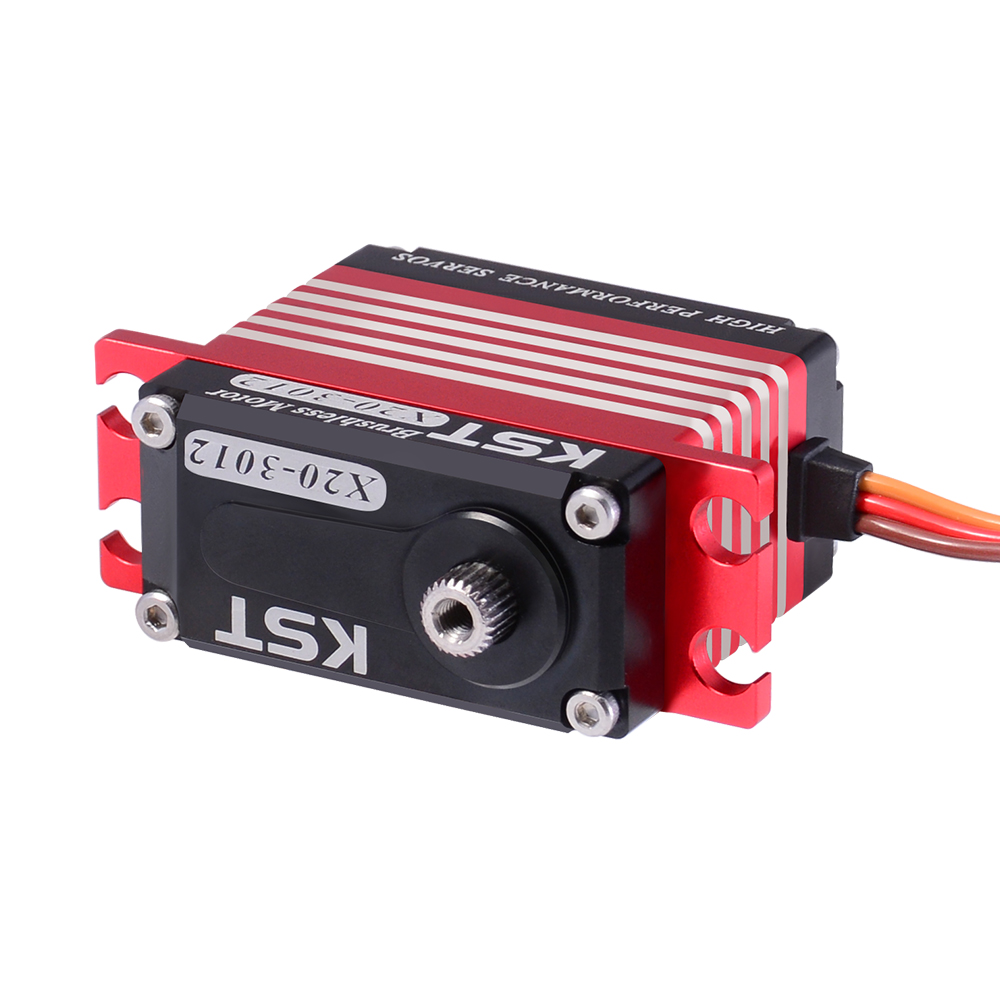

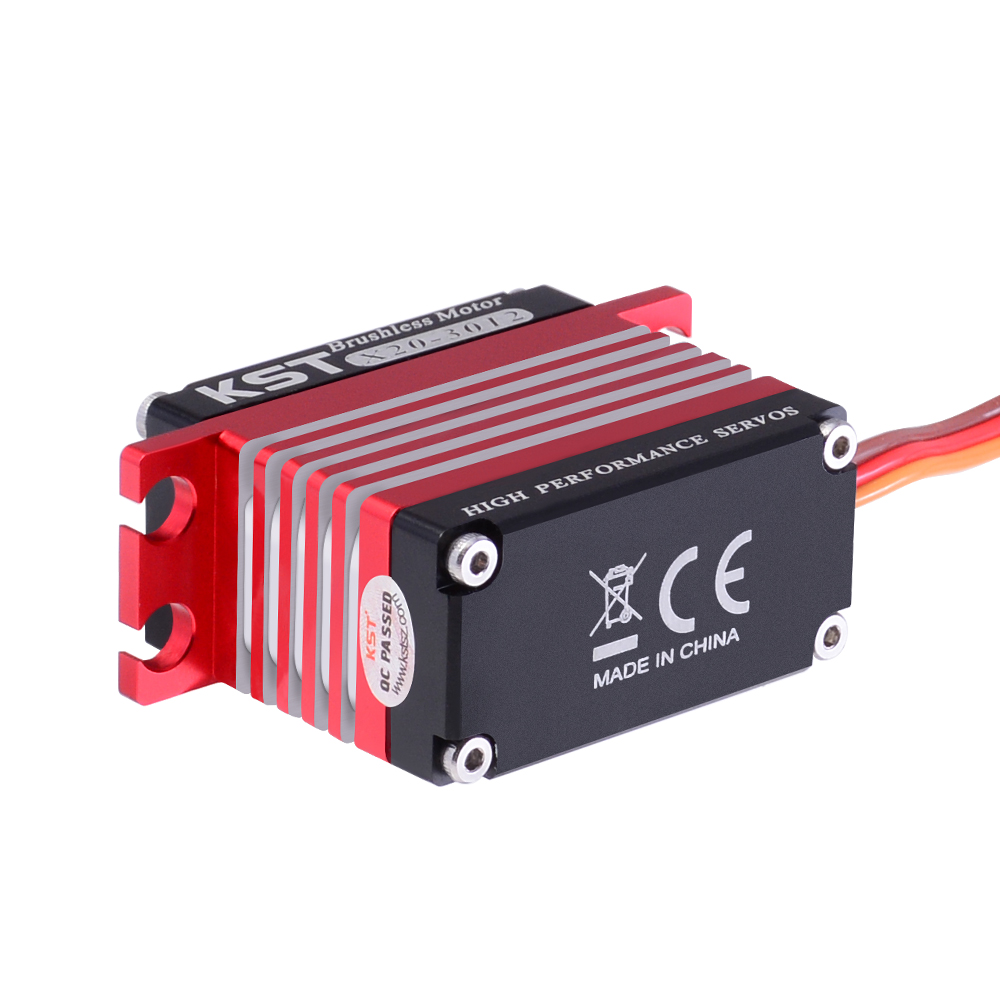

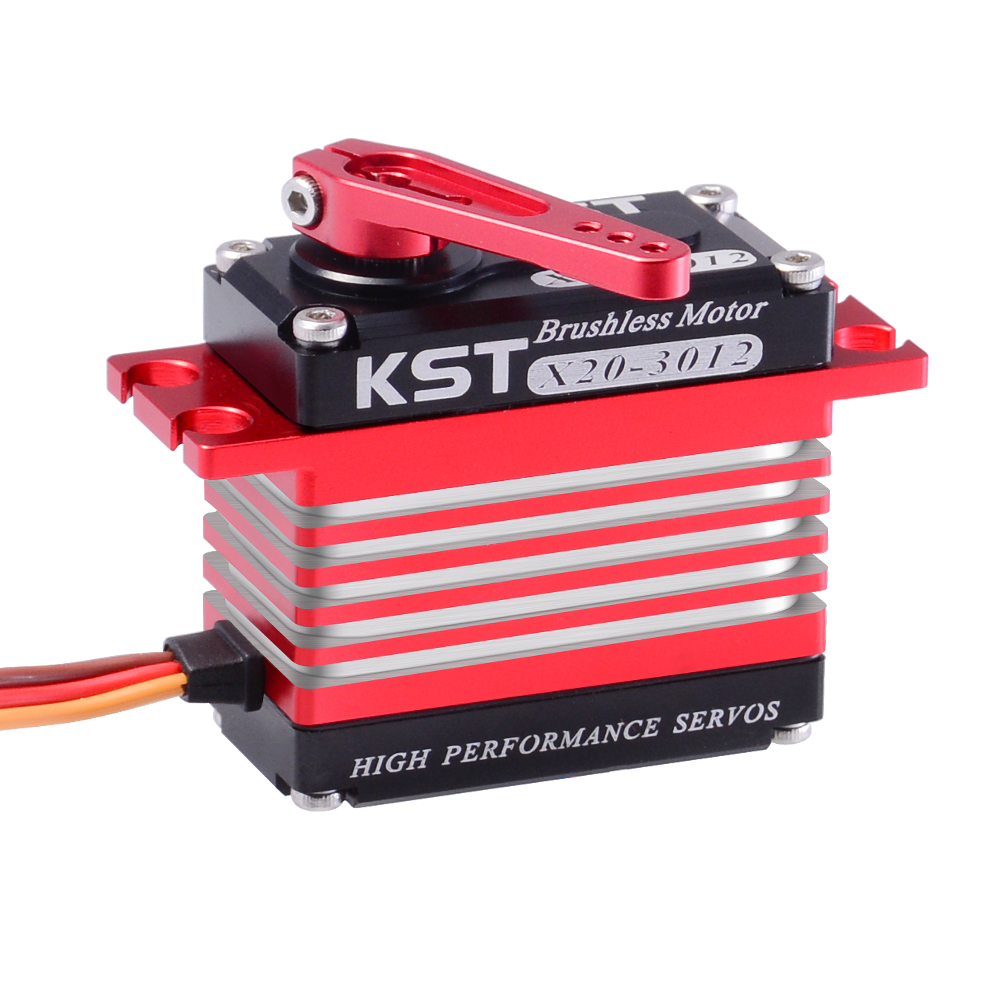

KST X20-3012 - 35kg 0.11sec Brushless Metal Servo

SKU: BR0023.0061
$144.99 $108.74
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity
-
+
Add to Favorites (0)
  • KST X20-3012 - 35kg 0.11sec Brushless Metal Servo
  • KST X20-3012 - 35kg 0.11sec Brushless Metal Servo
  • KST X20-3012 - 35kg 0.11sec Brushless Metal Servo
  • KST X20-3012 - 35kg 0.11sec Brushless Metal Servo
  • KST X20-3012 - 35kg 0.11sec Brushless Metal Servo
  • KST X20-3012 - 35kg 0.11sec Brushless Metal Servo
  • KST X20-3012 - 35kg 0.11sec Brushless Metal Servo
  • KST X20-3012 - 35kg 0.11sec Brushless Metal Servo
  • KST X20-3012 - 35kg 0.11sec Brushless Metal Servo
  • KST X20-3012 - 35kg 0.11sec Brushless Metal Servo
  • KST X20-3012 - 35kg 0.11sec Brushless Metal Servo
  • KST X20-3012 - 35kg 0.11sec Brushless Metal Servo
  • KST X20-3012 - 35kg 0.11sec Brushless Metal Servo
  • KST X20-3012 - 35kg 0.11sec Brushless Metal Servo
  • KST X20-3012 - 35kg 0.11sec Brushless Metal Servo
  • KST X20-3012 - 35kg 0.11sec Brushless Metal Servo
1/1
  • KST X20-3012 - 35kg 0.11sec Brushless Metal Servo
  • KST X20-3012 - 35kg 0.11sec Brushless Metal Servo
  • KST X20-3012 - 35kg 0.11sec Brushless Metal Servo
  • KST X20-3012 - 35kg 0.11sec Brushless Metal Servo
  • KST X20-3012 - 35kg 0.11sec Brushless Metal Servo
  • KST X20-3012 - 35kg 0.11sec Brushless Metal Servo
  • KST X20-3012 - 35kg 0.11sec Brushless Metal Servo
  • KST X20-3012 - 35kg 0.11sec Brushless Metal Servo
  • Description
KST X20-3012 HV brushless servo features with ultra high torque of 35Kgf.cm and an amazing 0.11sec fast speed. It is one of the most perfect choice for RC cars, aerobatic airplanes, and jets.

Features

  • Ultra High Torque & Excellent Speed
  • Brushless DC Motor
  • Dual Ball Bearings
  • CNC aluminium case
  • Ideal for RC cars, aerobatic airplanes and jets


Specification

  • Item: X20-3012 HV Brushless Servo
  • Rated Voltage: DC7.4V
  • Operating Voltage: DC6.0V-8.4V
  • Torque:  35Kgf.cm@8.4V / 30Kgf.cm@7.4V / 25Kgf.cm@6.0V
  • Speed:  0.11sec/60°@8.4V / 0.12sec/60°@7.4V / 0.15sec/60°@6.0V
  • Working Frequency: 1520μs/333Hz

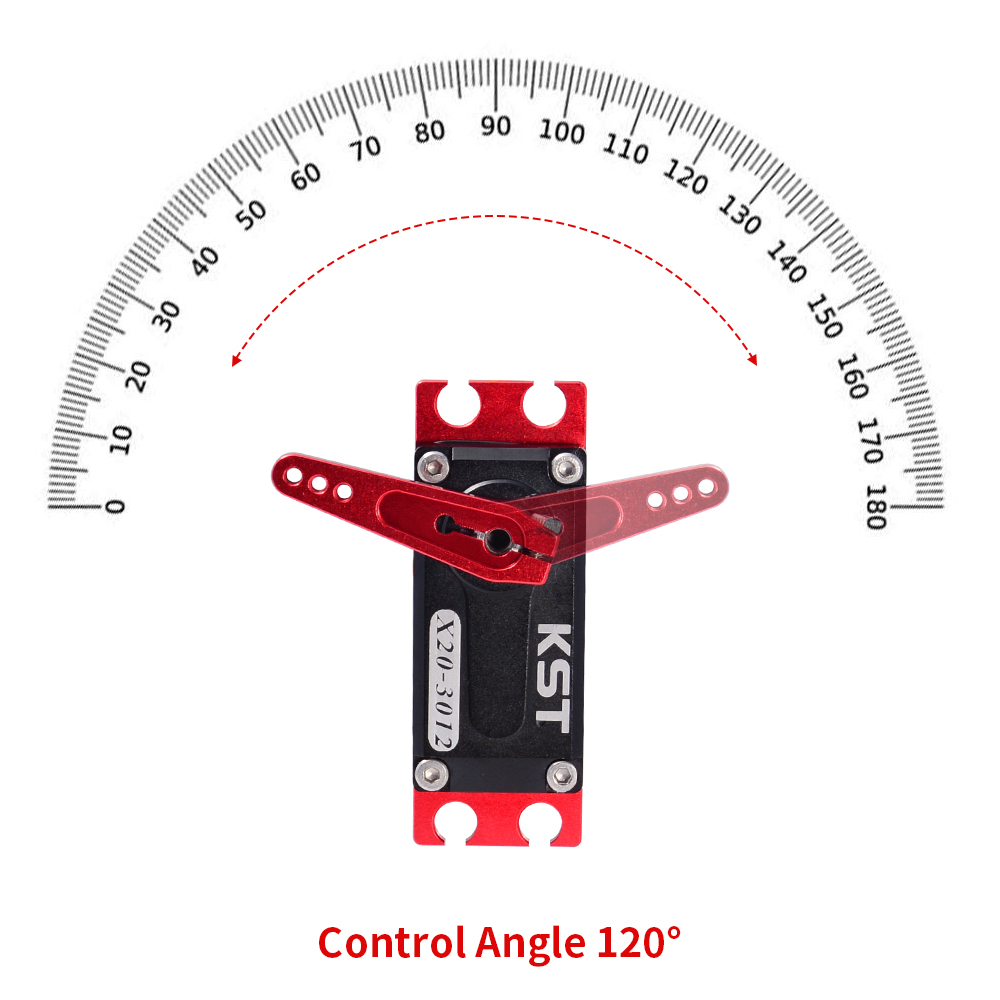

  • Default Travel Angle: ±50° =100° Total
  • Temperature Range: -10℃.......+65℃
  • Case Material: Aluminum Alloy
  • Position Sensor: Potentiometer
  • Motor: Brushless DC Motor
  • Gear Set Material: Hardened Steel

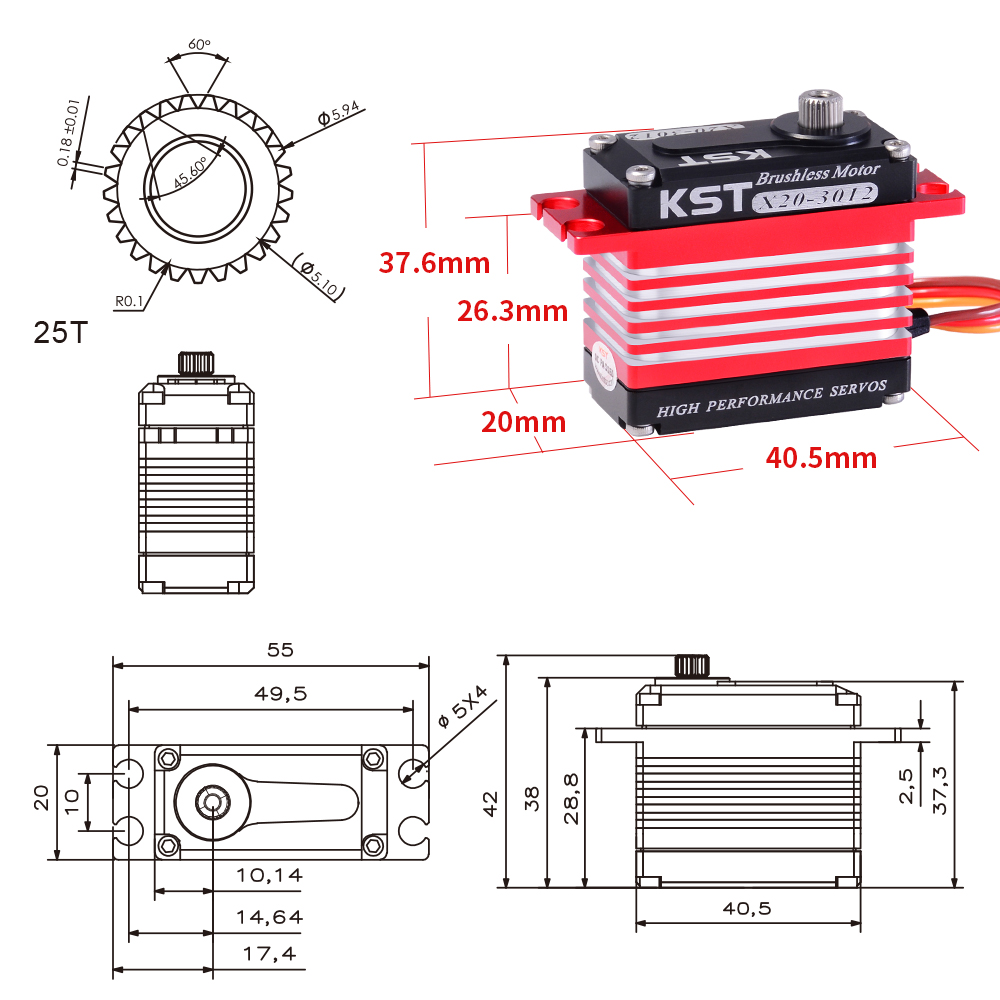

  • Size: 40.5mm*20mm*38mm±0.2mm
  • Weight: 72g±10%
  • Ball Bearing: 2BB

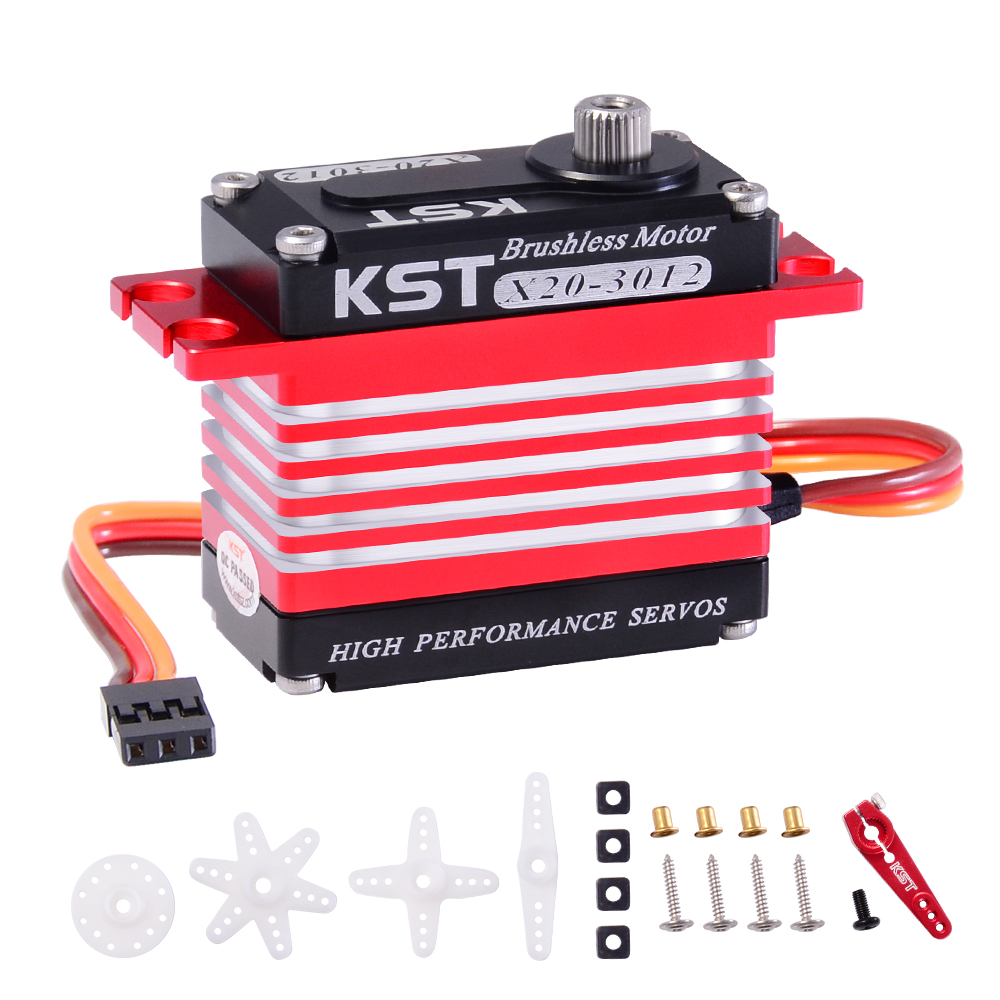

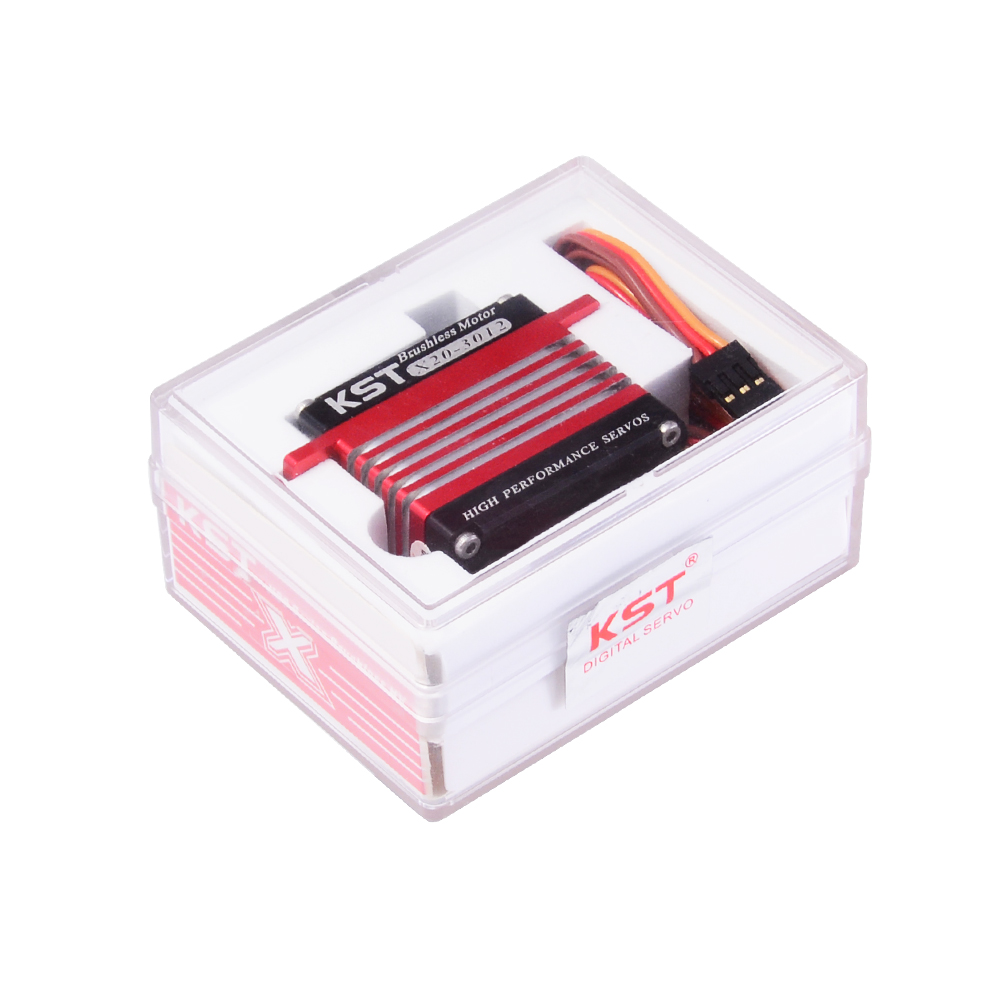

Package Contents

  • 1 * X20-3012 HV Brushless Servo
  • 1 * Pack of Accessories
