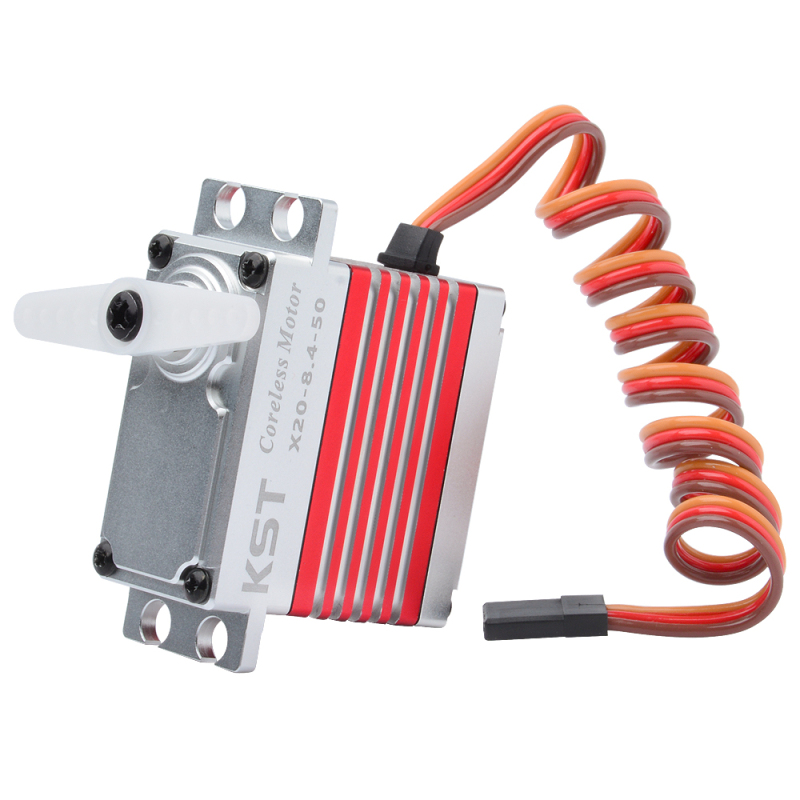

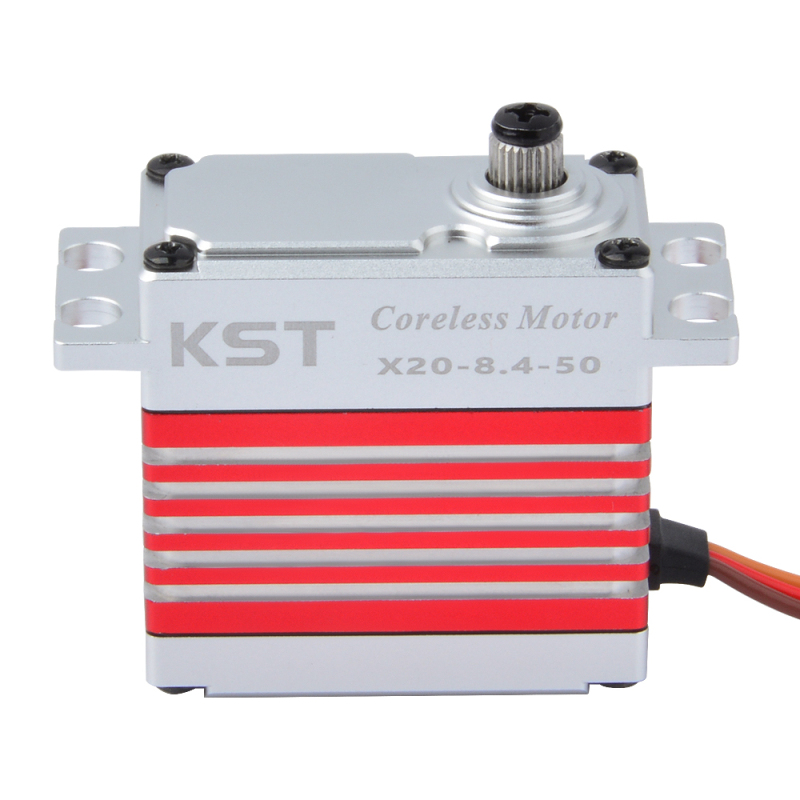

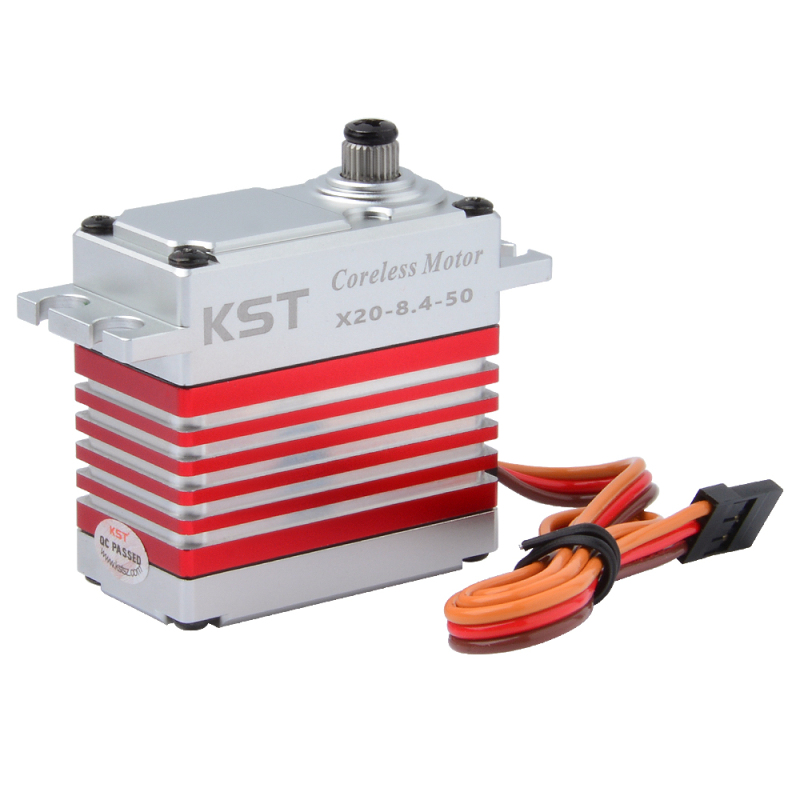

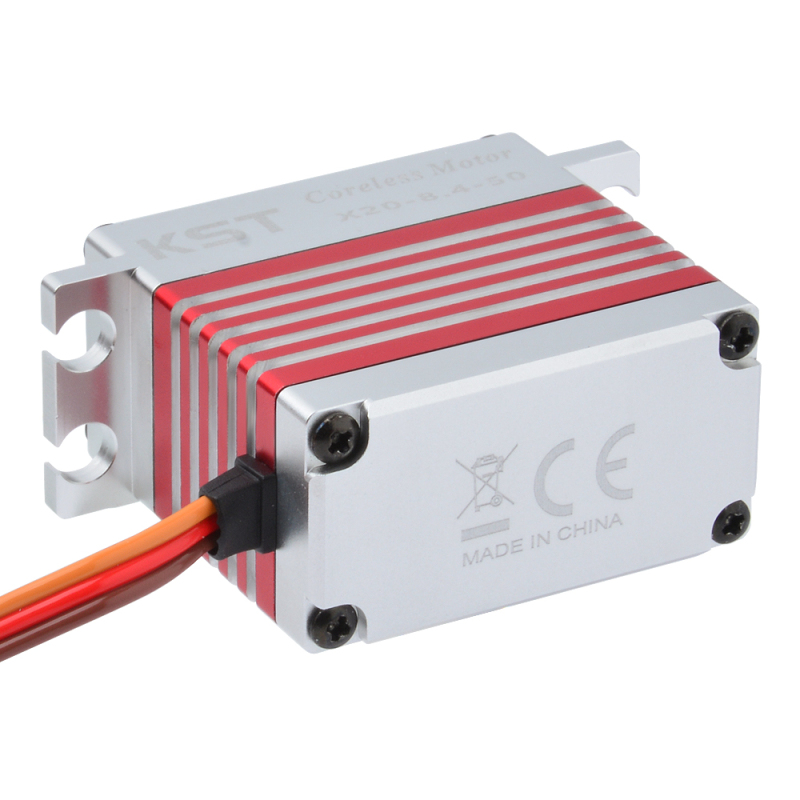

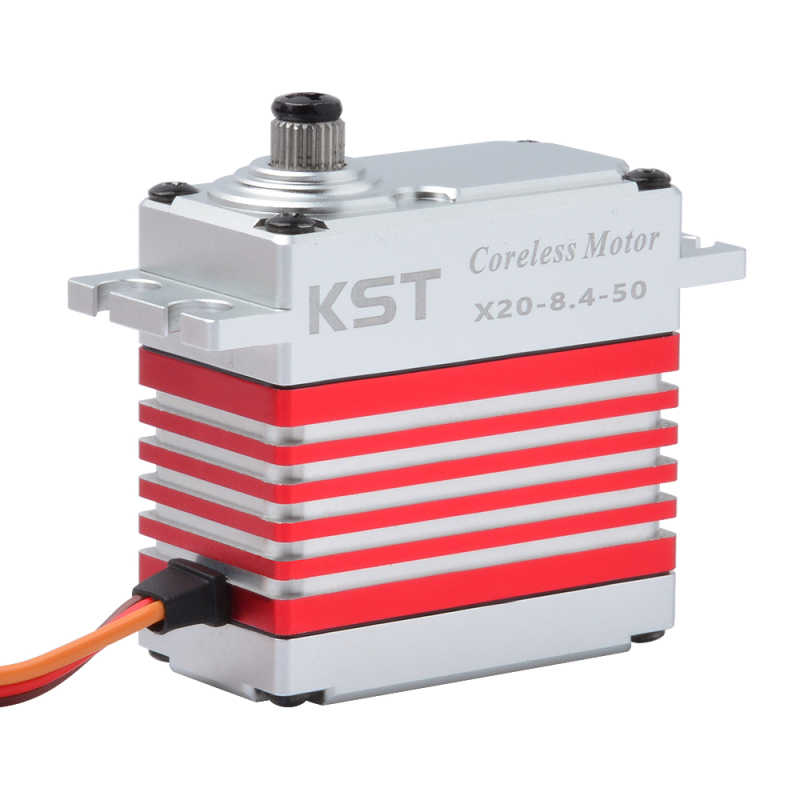

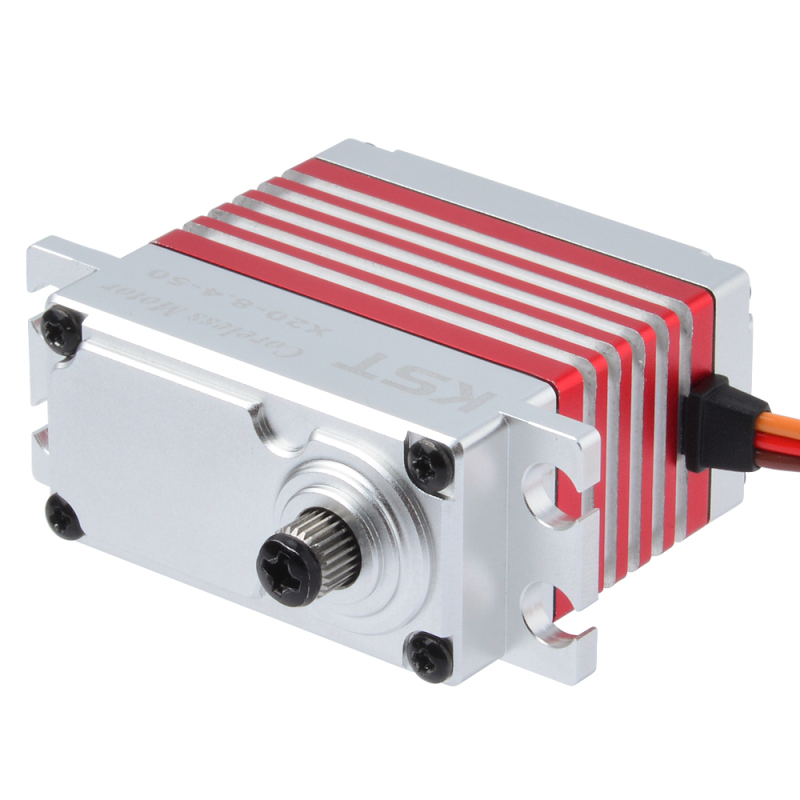

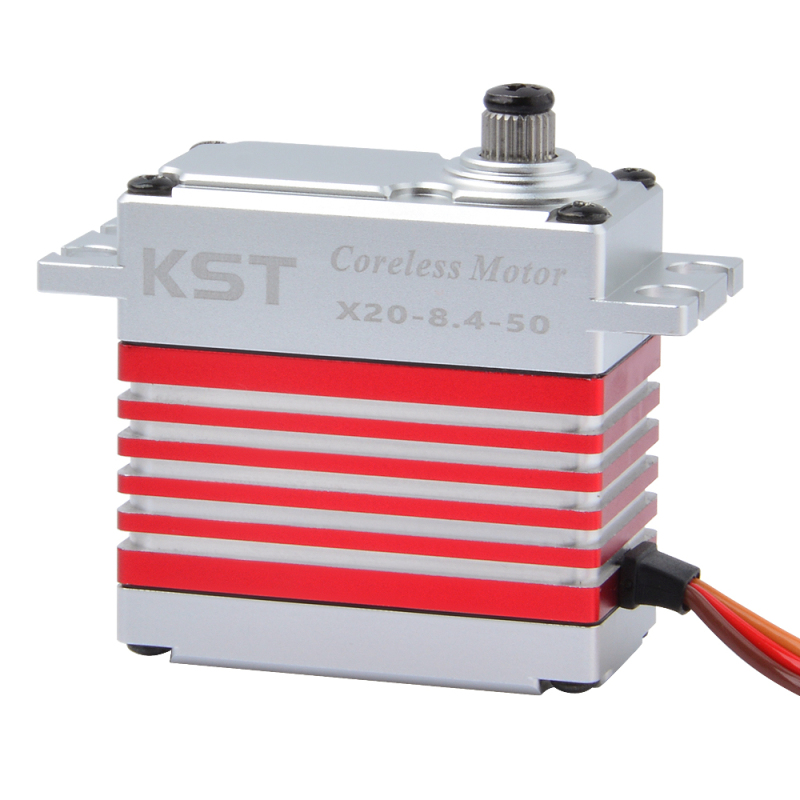

KST X20-8.4-50-180F 45KG 180 Degree Metal Gear Brushless Digital Servo

SKU: BR0023.0058
$94.99 $71.24
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity
-
+
Add to Favorites (0)
  • KST X20-8.4-50 45KG 180 Degree Metal Gear Brushless Digital Servo
  • KST X20-8.4-50 45KG 180 Degree Metal Gear Brushless Digital Servo
  • KST X20-8.4-50 45KG 180 Degree Metal Gear Brushless Digital Servo
  • KST X20-8.4-50 45KG 180 Degree Metal Gear Brushless Digital Servo
  • KST X20-8.4-50 45KG 180 Degree Metal Gear Brushless Digital Servo
  • KST X20-8.4-50 45KG 180 Degree Metal Gear Brushless Digital Servo
  • KST X20-8.4-50 45KG 180 Degree Metal Gear Brushless Digital Servo
  • KST X20-8.4-50 45KG 180 Degree Metal Gear Brushless Digital Servo
  • KST X20-8.4-50 45KG 180 Degree Metal Gear Brushless Digital Servo
  • KST X20-8.4-50 45KG 180 Degree Metal Gear Brushless Digital Servo
  • KST X20-8.4-50 45KG 180 Degree Metal Gear Brushless Digital Servo
  • KST X20-8.4-50 45KG 180 Degree Metal Gear Brushless Digital Servo
  • KST X20-8.4-50 45KG 180 Degree Metal Gear Brushless Digital Servo
  • KST X20-8.4-50 45KG 180 Degree Metal Gear Brushless Digital Servo
  • KST X20-8.4-50 45KG 180 Degree Metal Gear Brushless Digital Servo
  • KST X20-8.4-50 45KG 180 Degree Metal Gear Brushless Digital Servo
  • KST X20-8.4-50 45KG 180 Degree Metal Gear Brushless Digital Servo
  • KST X20-8.4-50 45KG 180 Degree Metal Gear Brushless Digital Servo
  • KST X20-8.4-50 45KG 180 Degree Metal Gear Brushless Digital Servo
  • KST X20-8.4-50 45KG 180 Degree Metal Gear Brushless Digital Servo
  • KST X20-8.4-50 45KG 180 Degree Metal Gear Brushless Digital Servo
  • KST X20-8.4-50 45KG 180 Degree Metal Gear Brushless Digital Servo
1/1
  • KST X20-8.4-50 45KG 180 Degree Metal Gear Brushless Digital Servo
  • KST X20-8.4-50 45KG 180 Degree Metal Gear Brushless Digital Servo
  • KST X20-8.4-50 45KG 180 Degree Metal Gear Brushless Digital Servo
  • KST X20-8.4-50 45KG 180 Degree Metal Gear Brushless Digital Servo
  • KST X20-8.4-50 45KG 180 Degree Metal Gear Brushless Digital Servo
  • KST X20-8.4-50 45KG 180 Degree Metal Gear Brushless Digital Servo
  • KST X20-8.4-50 45KG 180 Degree Metal Gear Brushless Digital Servo
  • KST X20-8.4-50 45KG 180 Degree Metal Gear Brushless Digital Servo
  • KST X20-8.4-50 45KG 180 Degree Metal Gear Brushless Digital Servo
  • KST X20-8.4-50 45KG 180 Degree Metal Gear Brushless Digital Servo
  • KST X20-8.4-50 45KG 180 Degree Metal Gear Brushless Digital Servo
  • Description

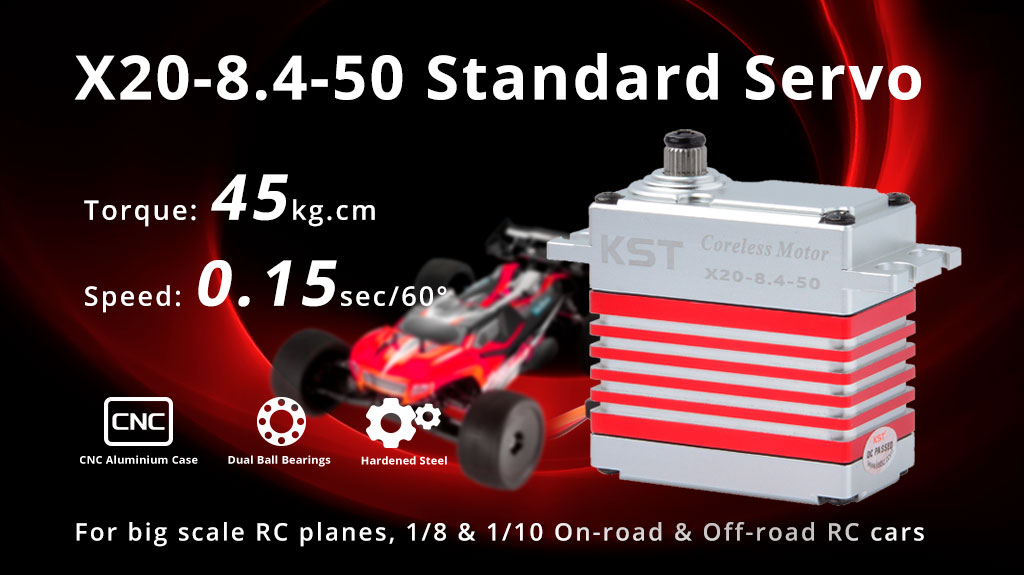

X20-8.4-50 is an incredibly powerful servo that features a full CNC aluminum case, high power coreless motor, and metal gears throughout. Boasting an incredible 45Kgf.cm of torque at 8.4V. The X20-8.4-50 will suit a wide variety of RC applications from giant scale aircraft, 1/8 scale nitro and electric off-road or on-road vehicles, crawlers, and much more!



Features

  • Extreme Torque and Excellent Speed
  • CNC Aluminium Case
  • Two Ball Bearings
  • Programmable

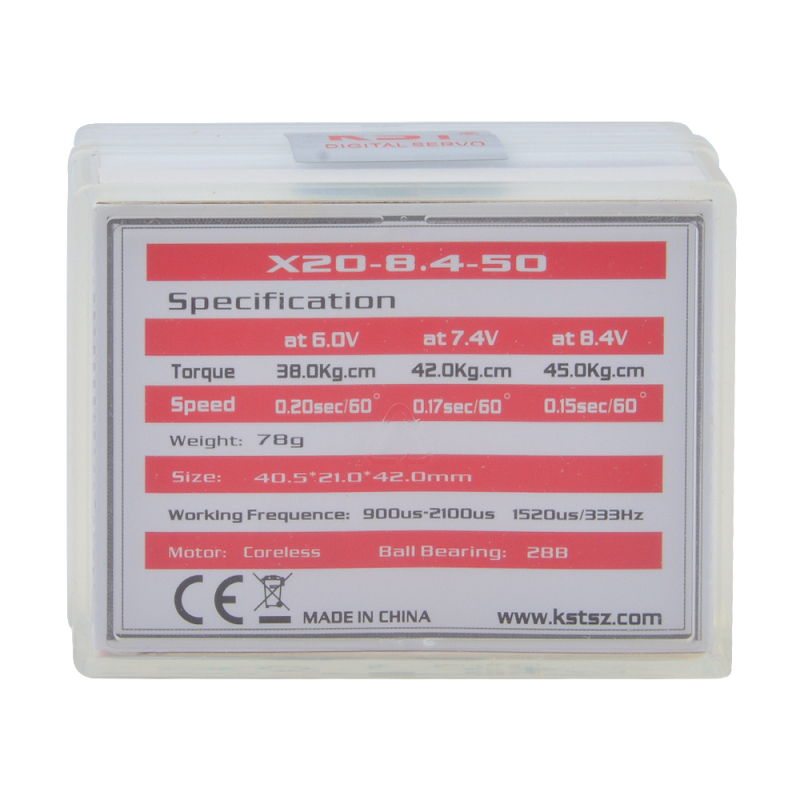

Specification

  • Item: X20-8.4-50 Brushless Standard Servo
  • Rated Voltage: DC7.4V
  • Voltage Range: DC6.0V-8.4V
  • Torque:
38Kgf.cm@6.0V
42Kgf.cm@7.4V
45Kgf.cm@8.4V
  • Speed:
0.20sec/60°@6.0V
0.17sec/60°@7.4V
0.15sec/60°@8.4V
  • Working Frequency: 1520us/333Hz
  • Default Travel Angle: ±50° = 100° Total
  • Temperature Range: -10℃……+65℃
  • Soft Start: Programable
  • Programmable: Yes
  • Case Material: Aluminum Alloy
  • Motor Type: Coreless DC Motor
  • Gear Set Material: Hardened Steel
  • Position Sensor: Potentiometer
  • Ball Bearing: 2BB

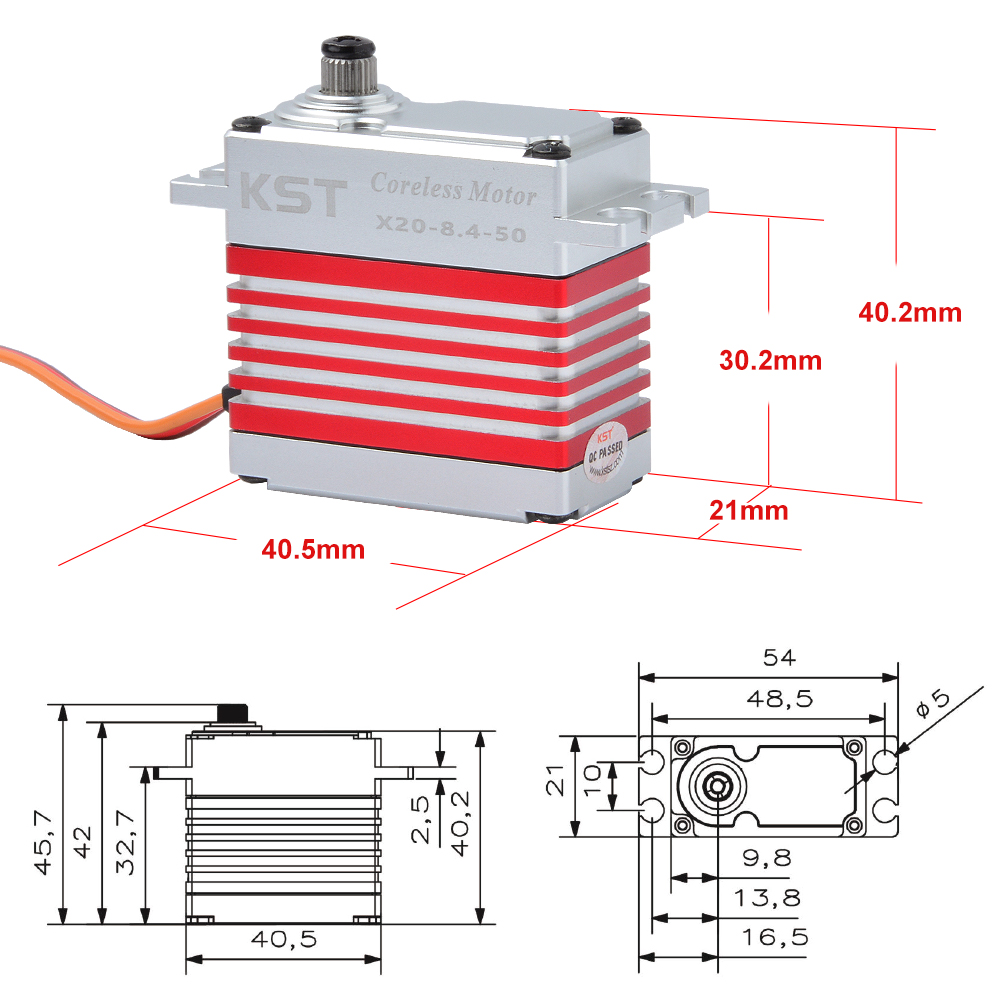

  • Case Dimensions: 40.5mm*21mm*42mm±0.2mm
  • Weight: 78g±10%

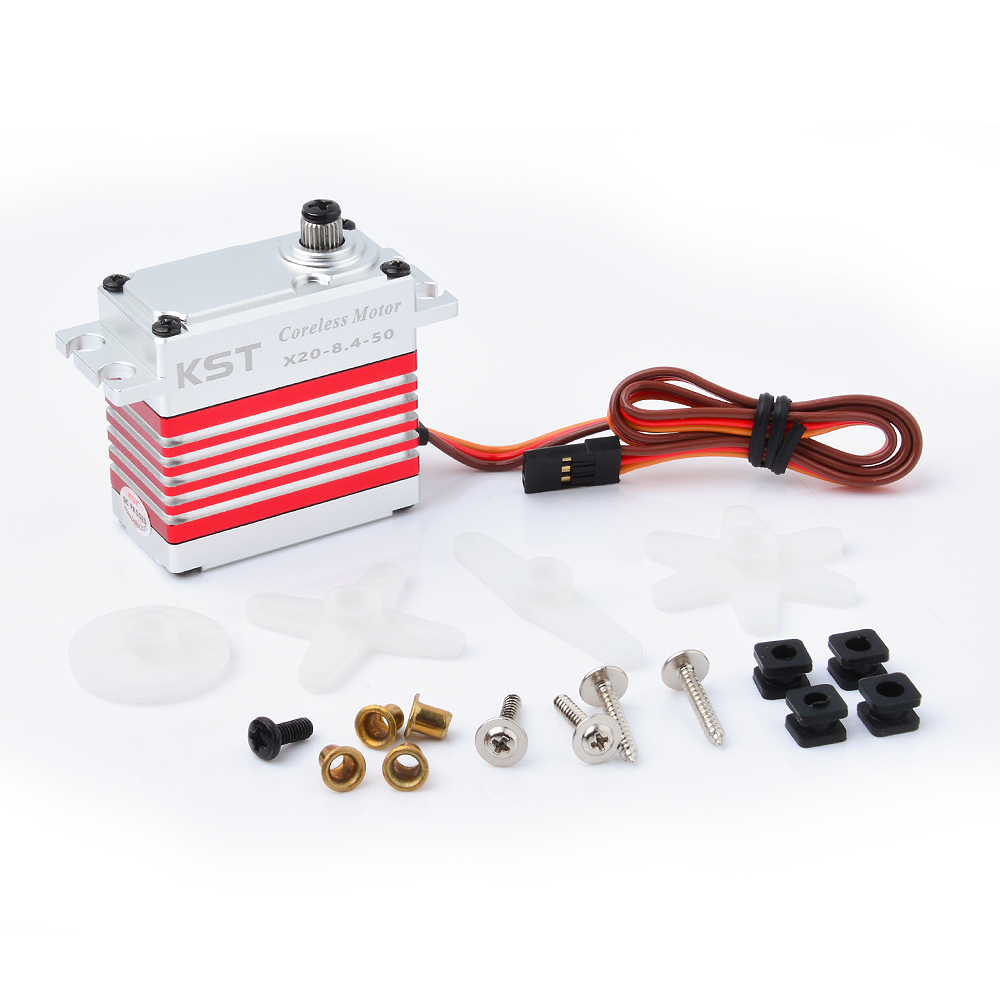

Package Including

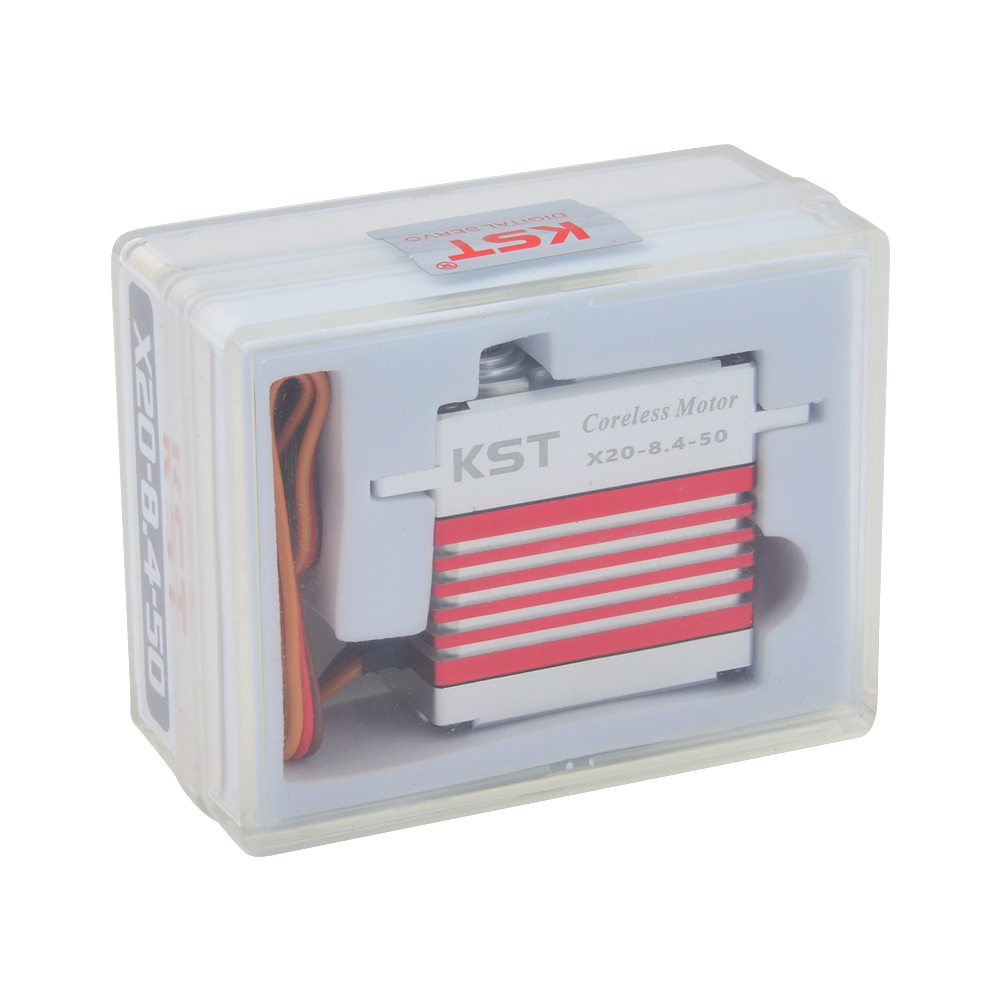

  • 1 * KST X20-8.4-50 Brushless Standard Servo
  • 1 * Pack of Accessories
