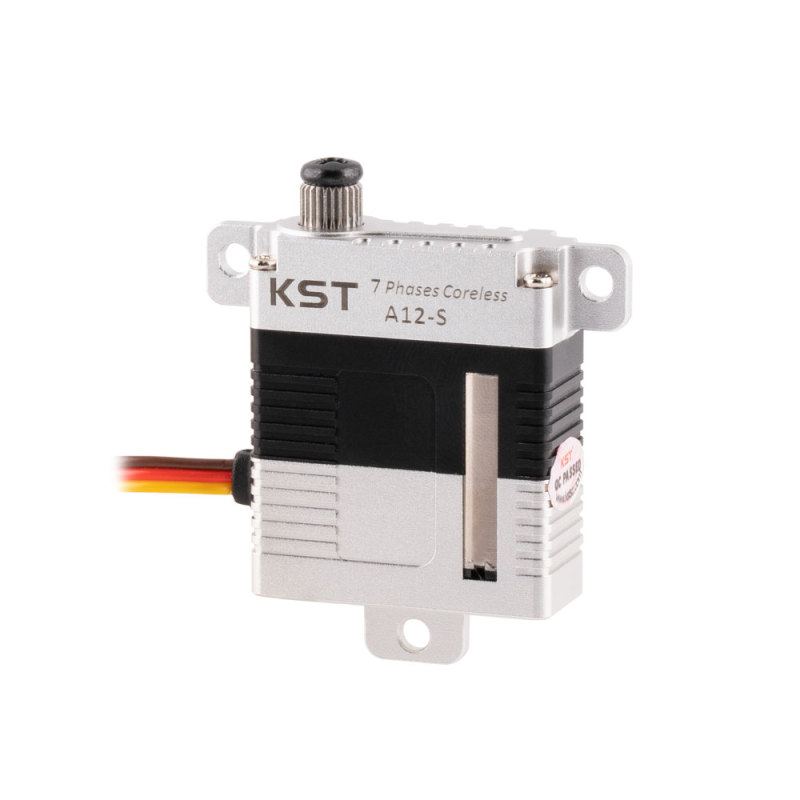

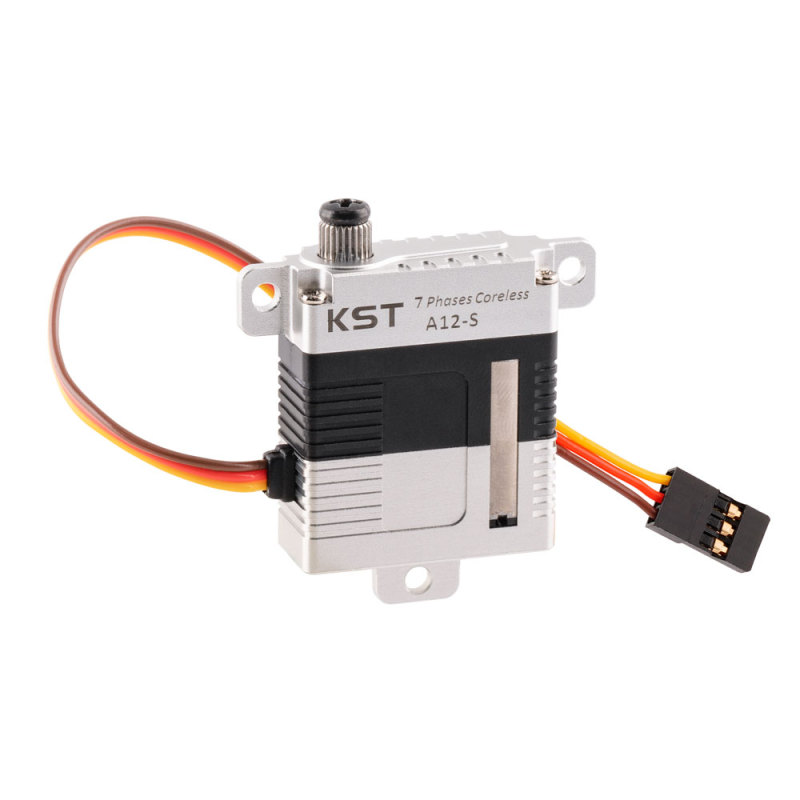

KST Servos are renowned for Quality at realistic prices. From Hobby helicopters and gliders to Industrial and UAV applications KST servos have earnt a reputation for performance even under the most demanding conditions. Whether you need to win your next competition event, power a mission critical UAV or operate industrial grade machinery or robotics KST has a solution for you. Talk to our sales team today, OEM and ODM services are also available for custom installations. Features. 7 Phase Coreless DC Motor Compact and light weight design Excellent torque and speed Designed for high performance RC Gliders Excellent heat dissipation Programing box/USB link compatible

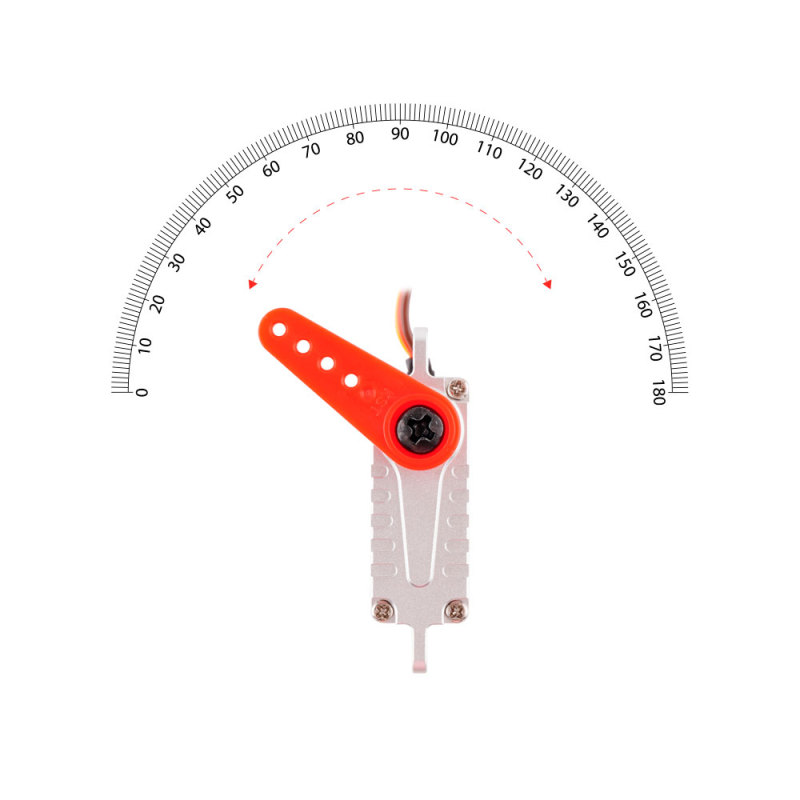

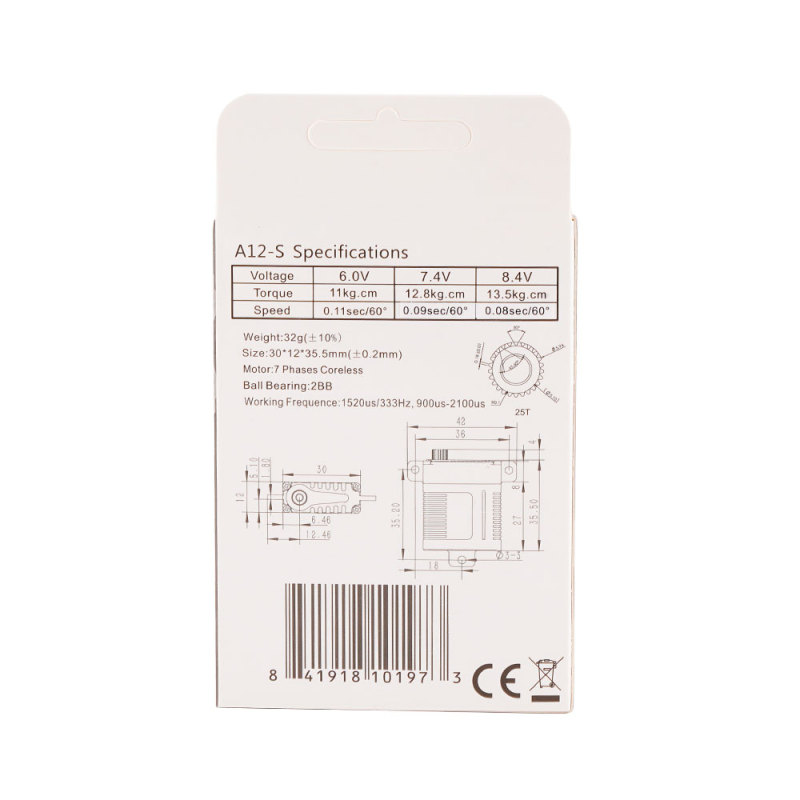

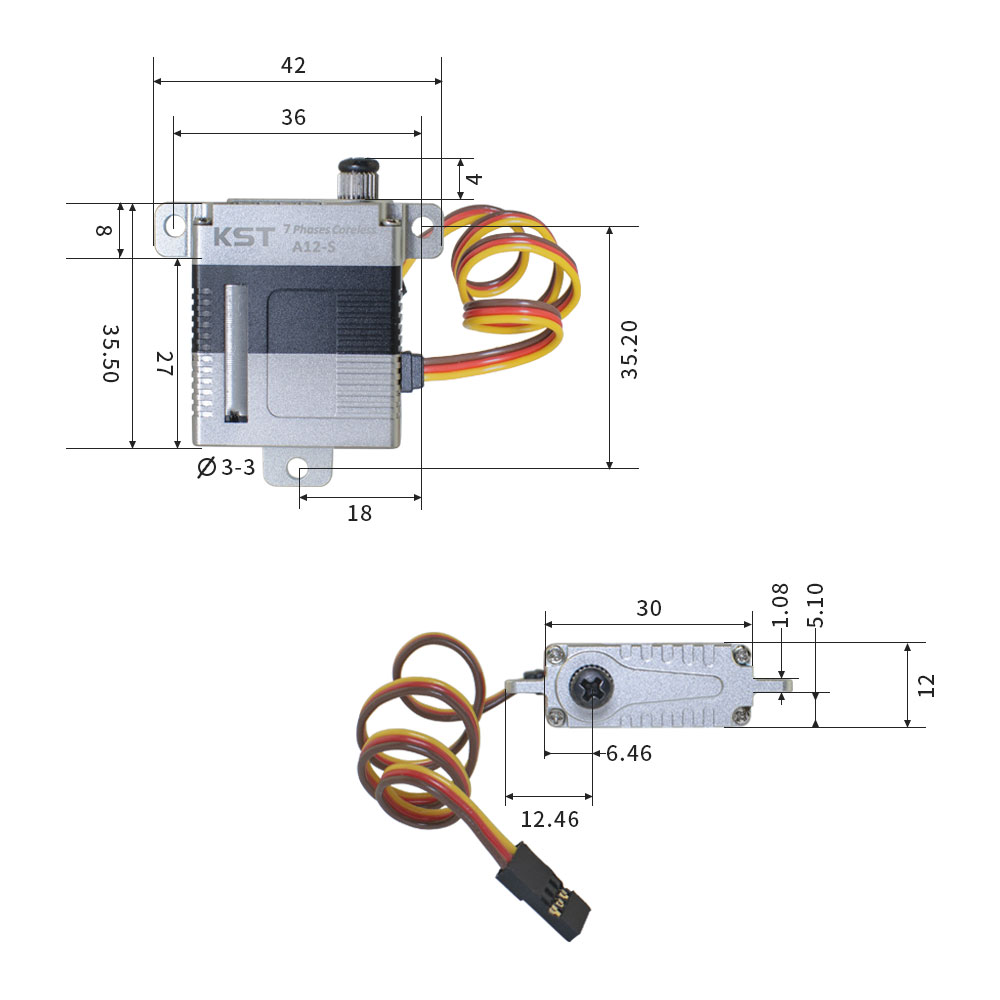

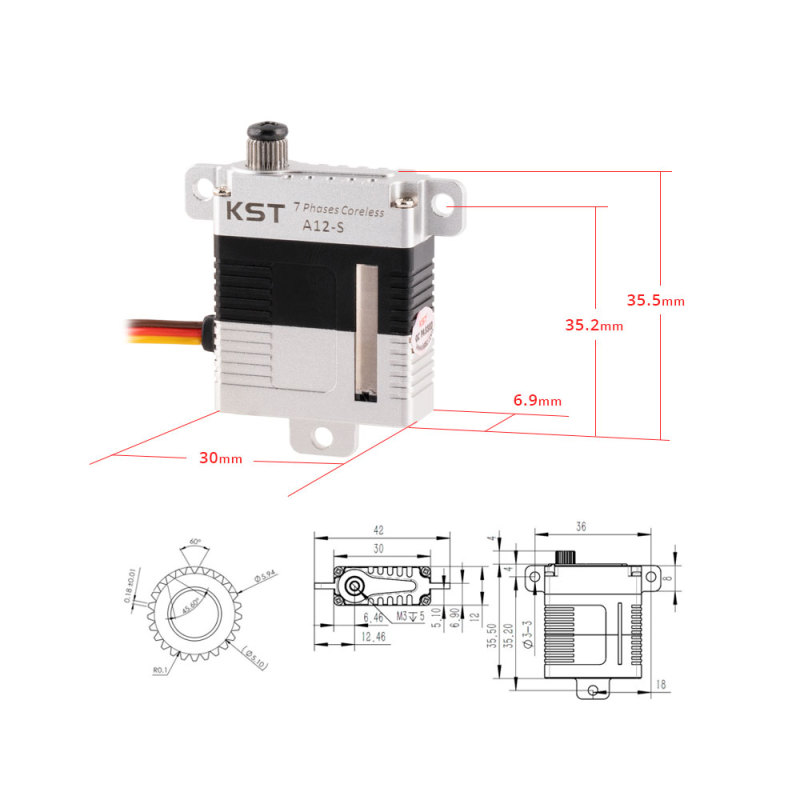

Specs. Rated Voltage DC7.4V Voltage Range DC6.0V-8.4V Torque: 1.10N.m@6.0V, 1.28N.m@7.4V, 1.35N.m@8.4V Torque:11.21kg-cm@6.0V, 13.05kg-cm@7.4V, 13.76kg-cm@8.4V Speed: 0.11sec/60°@6.0V, 0.09sec/60°@7.4V, 0.08sec/60°@8.4V Working Frequency 1520us/333Hz Default Travel Angle ±60° = 120° Total Temperature Range -10℃……+60℃ Soft Start Yes Programable Yes Case Material Aluminum Alloy Motor Type 7 Phases Coreless DC Motor Gear Set Material Hardened Steel Position Sensor Contactless(Magnetic sensor) Ball Bearing 2BB Case Dimensions 30mm*12mm*35.5mm±0.2m Weight 32g±10%
