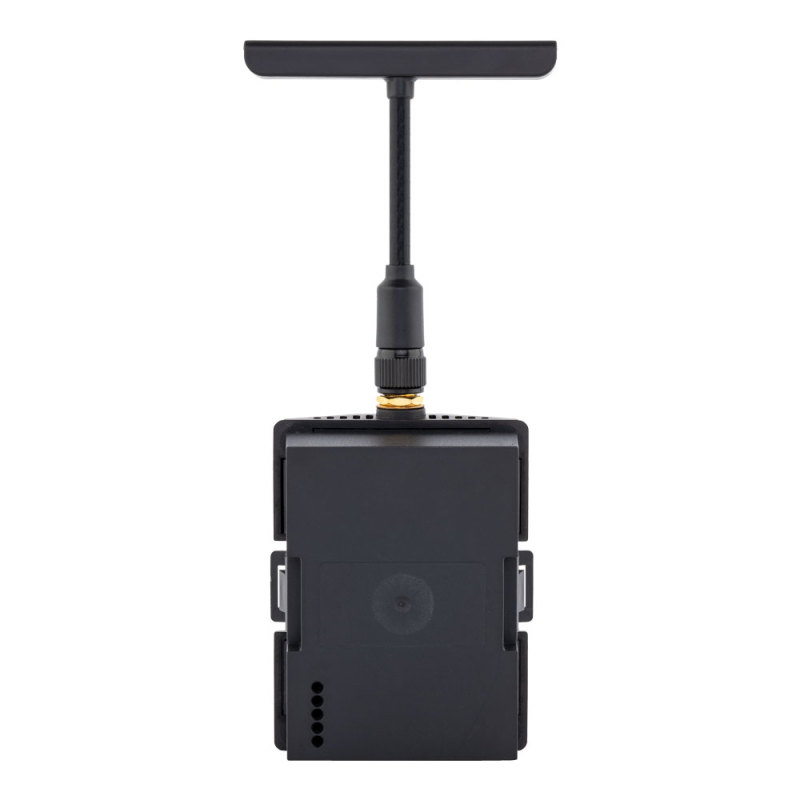

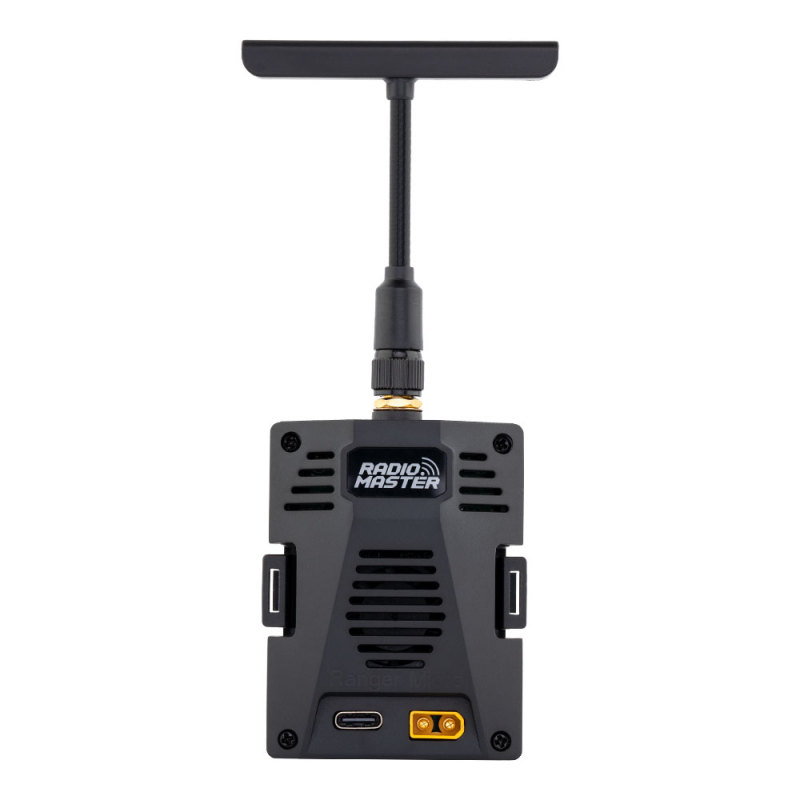

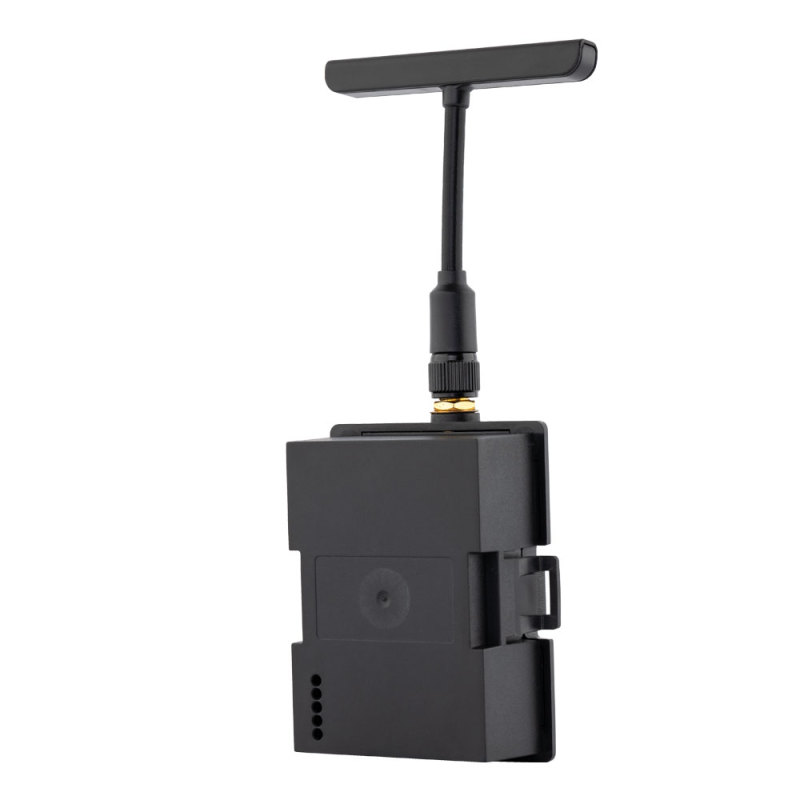

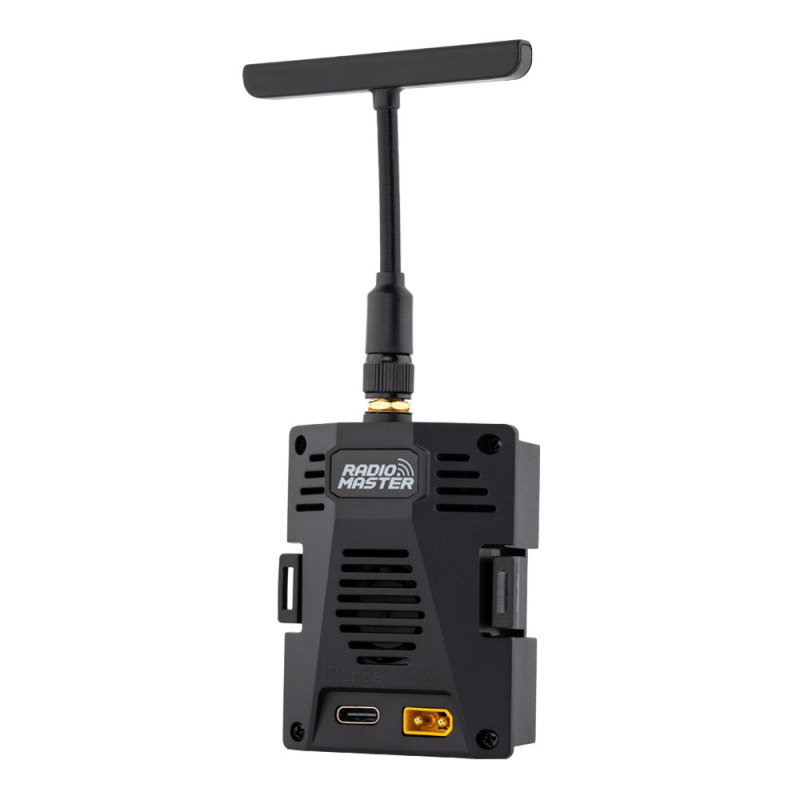

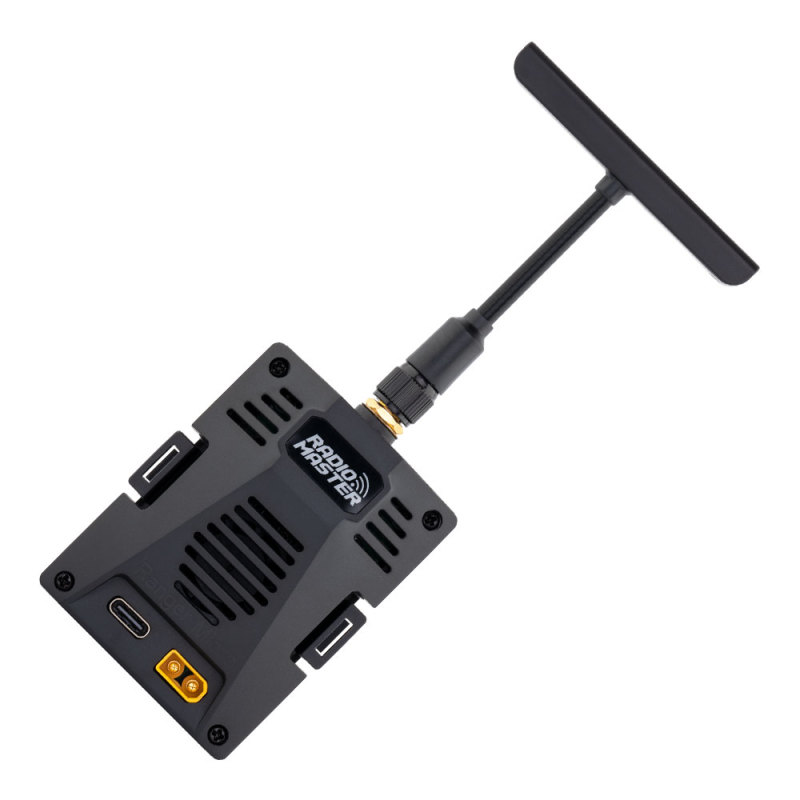

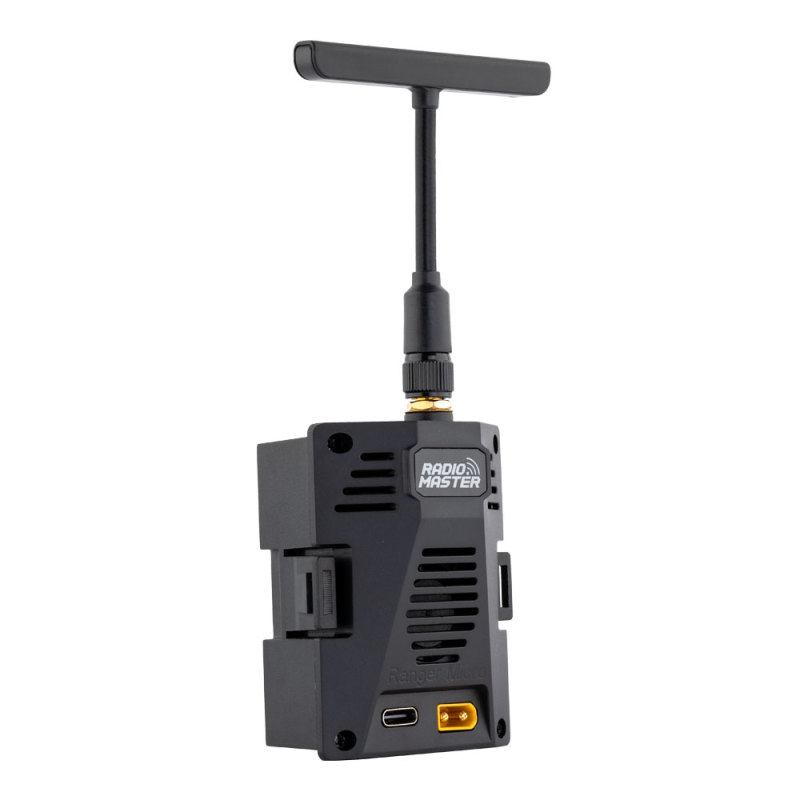

RadioMaster - Ranger Micro 2.4GHz ELRS Module

Want to experience the efficiency, stability, and low-latency link of the ExpressLRS protocol without purchasing a new radio? RadioMaster has you covered!

Featuring F-1000Hz refresh rates and a high-efficiency cooling system, the Ranger Micro 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Attach the module to a compatible radio (TX16S, TX16S MkII, TX12, TX12 MkII and more) to enjoy all that ELRS has to offer.

The included T-shape antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.

*Note: The Ranger Micro 2.4GHz ELRS Module fits JR style micro module bays, for Nano connectors, please consider the Ranger and the Ranger Nano modules.

Features

• Built-in ExpressLRS Backpack
• High-efficiency cooling system
• Wifi and Bluetooth support
• Packet rates up to F-1000Hz
• T-antenna included
• With the Micro connector, support TX16S MKII and TX12 MKII radio



  Specification


  • Item: Ranger Micro Module
  • Regulatory Domain: ISM2400
  • MCU: ESP32(main), ESP8285(aux,as ESP backpack)
  • RF chip: SX1281IMLTRT
  • Frequency Range: 2400 MHz - 2480 MHz
  • Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
  • Minimum receiver refresh rate: 25Hz
  • Wifi Support: Yes
  • Bluetooth support: Yes

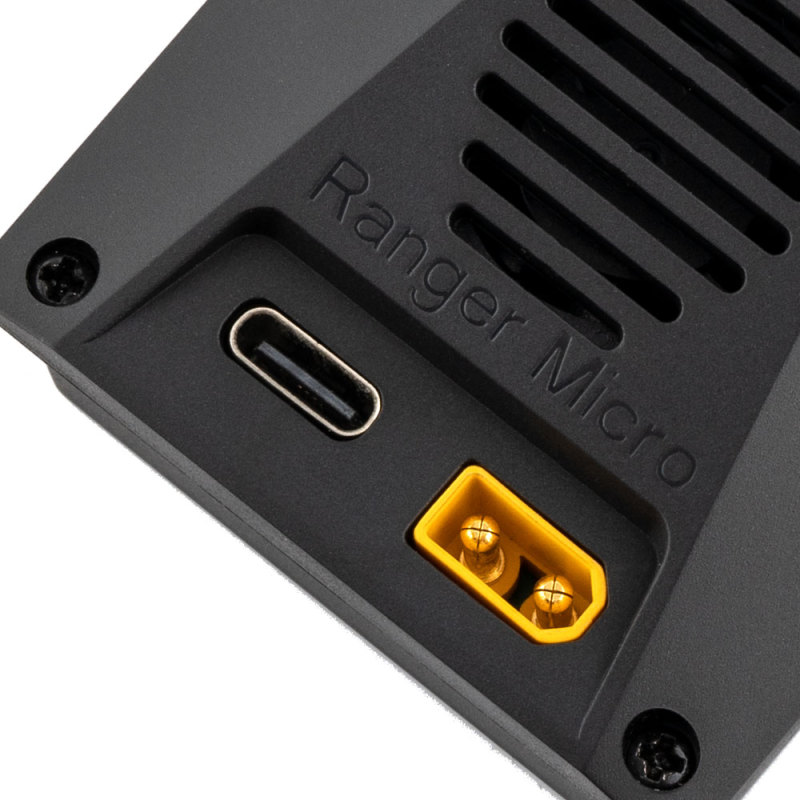

  • XT30 Power supply voltage: DC 6V - 16.8V
  • Weight:  50g (with antenna) / 40.5g (without antenna)

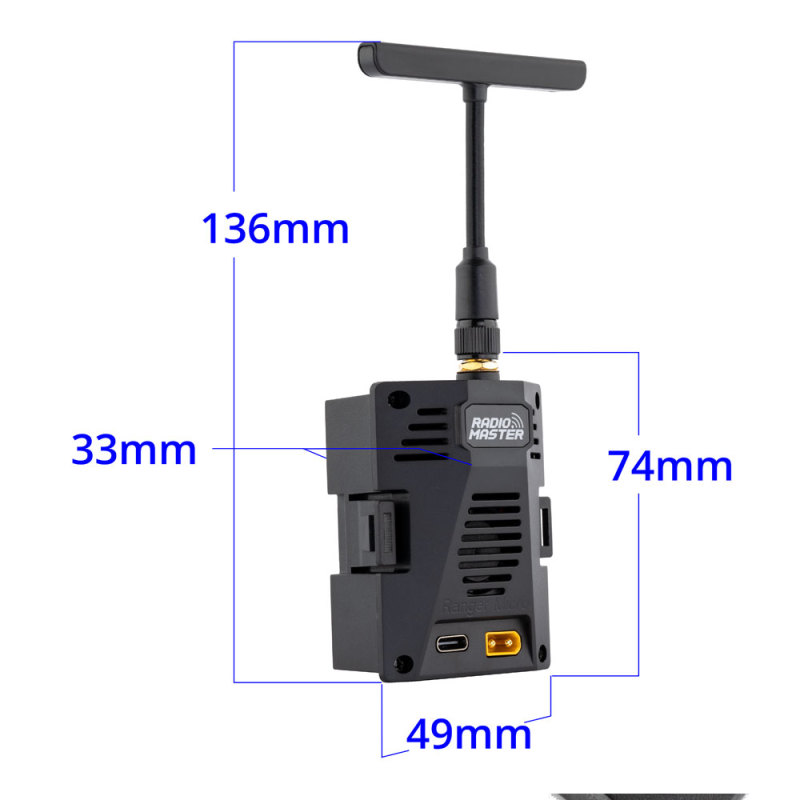

  • Dimension: 136*49*33mm (with T antenna) / 74*49*33mm (without antenna)



    Package Includes

    • 1 * Ranger Micro Module
    • 1 * T Antenna

    Need receivers too? Purchase the Ranger Micro Combo, which includes the following items:

    • 2 * RP1 ExpressLRS 2.4ghz Nano Receiver
    • 1 * RP2 ExpressLRS 2.4ghz Nano Receiver
