Want to experience the efficiency, stability, and low-latency link of the ExpressLRS protocol without purchasing a new radio? RadioMaster has you covered!

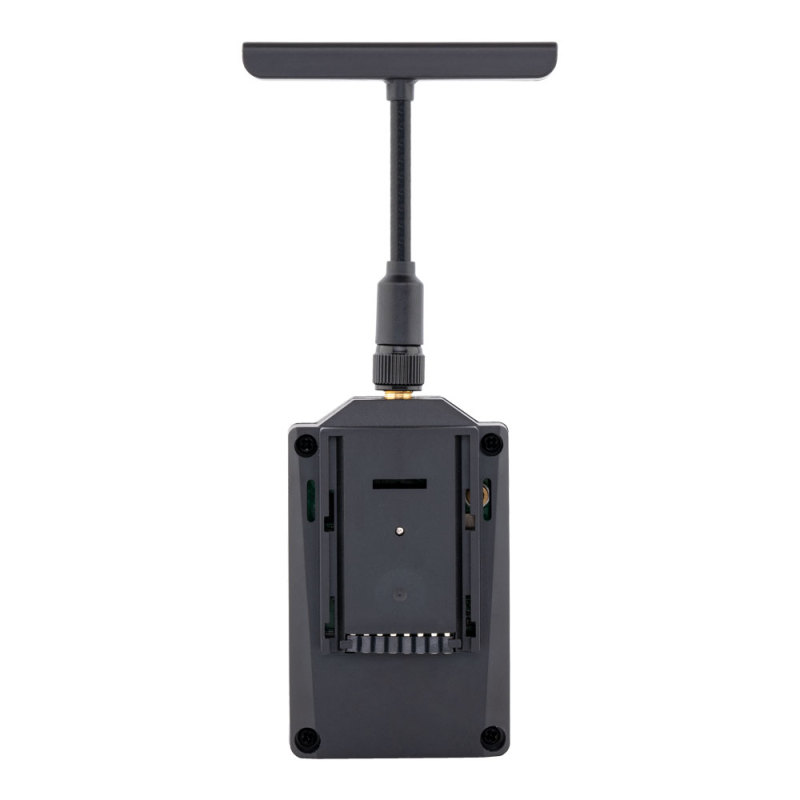

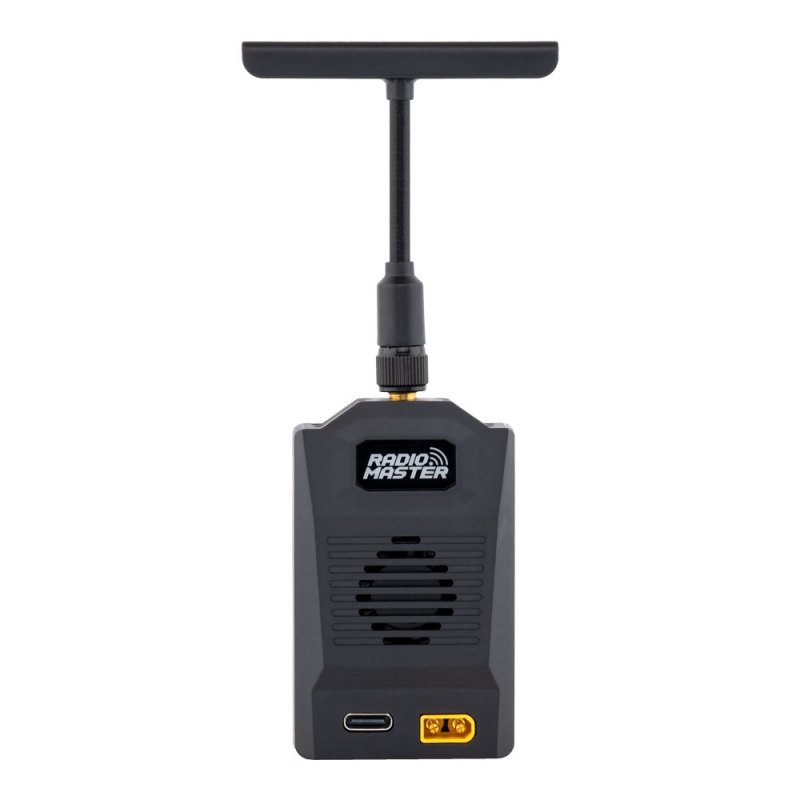

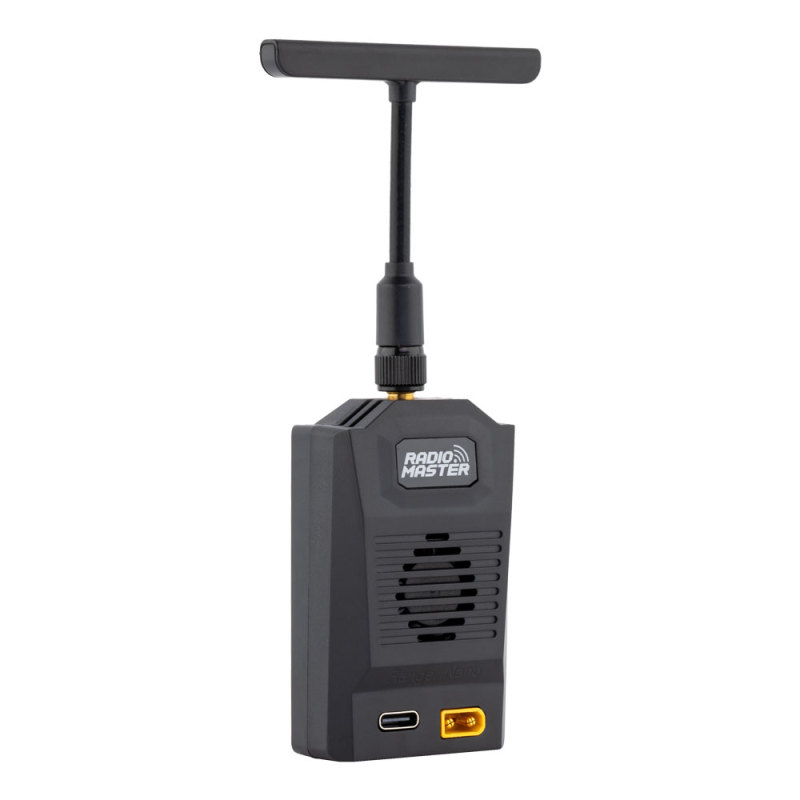

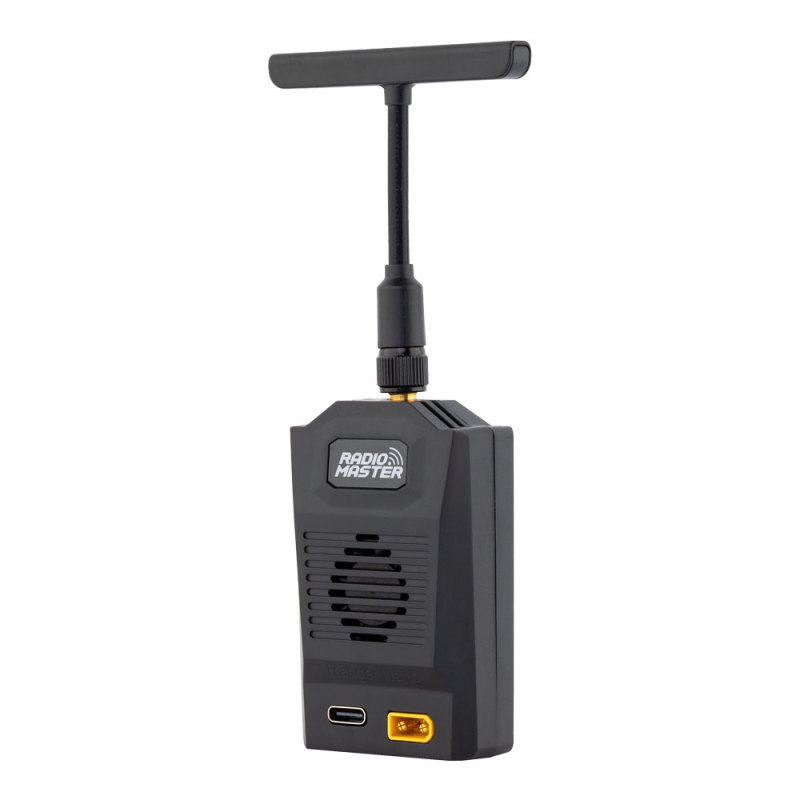

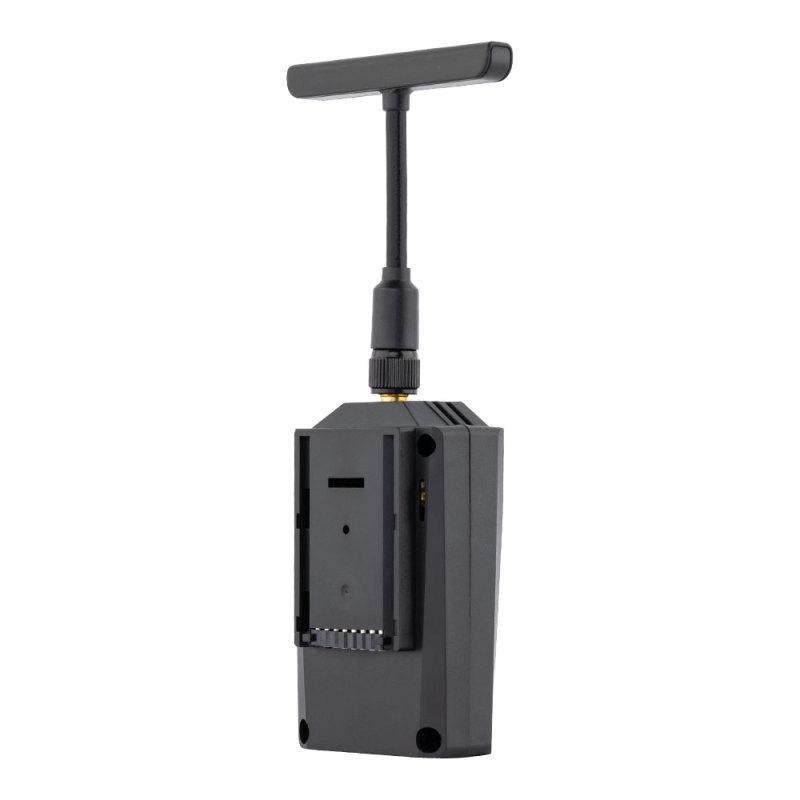

Featuring F-1000Hz refresh rates and a high-efficiency cooling system, the Ranger Nano 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Attach the module to a compatible radio (RadioMaster Zorro and more) to enjoy all that ELRS has to offer.
The included T-shape antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.
*Note: The Ranger Nano 2.4GHz ELRS Module fits Nano module bays, for JR style/Micro connectors, please consider the Ranger and the Ranger Micro modules.
Features
- Built-in ExpressLRS Backpack
-
High-efficiency cooling system
-
Wifi and Bluetooth support
-
Packet rates up to F-1000Hz
-
T-antenna included
- With the Nano connector, support Zorro radio
Specification
-
Item: Ranger Nano Module
-
Regulatory Domain: ISM2400
-
MCU: ESP32(main), ESP8285(aux,as ESP backpack)
-
RF chip: SX1281IMLTRT
-
Frequency Range: 2400 MHz - 2480 MHz
-
Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
-
Minimum receiver refresh rate: 25Hz
-
Wifi Support: Yes
-
Bluetooth support: Yes
-
XT30 Power supply voltage: DC 6V - 16.8V
-
Weight: 48g (with antenna) / 39g (without antenna)Dimension: 136*42*26mm (with T antenna) / 74*42*26mm (without antenna)
-
1 * Ranger Nano Module
-
1 * T Antenna
Need receivers too? Purchase the Ranger Nano Combo, which includes the following items:
- 2 * RP1 ExpressLRS 2.4ghz Nano Receiver
- 1 * RP2 ExpressLRS 2.4ghz Nano Receiver
