Features:
- With the dual power AC/DC input, B6 Nex can charge the 1-6 cell Li-ion or LiPo batteries at a maximum charge current of 10A.
- The built-in Bluetooth 5.0 enables B6 Nex’s connectivity with smartphones.
- The app can push notifications reminding users that the charge or discharge is completed or there is a firmware upgrade.
- With B6 Nex, charging becomes a faster and more convenient experience!

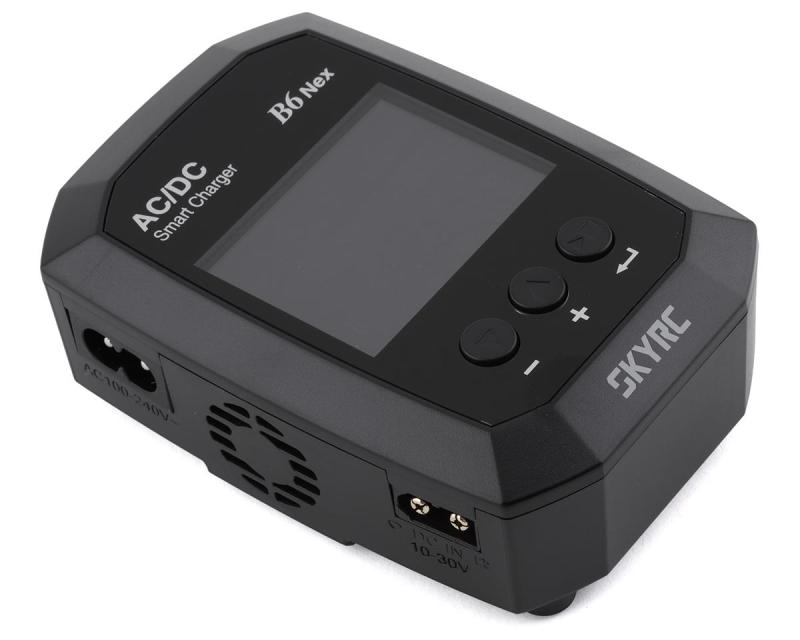

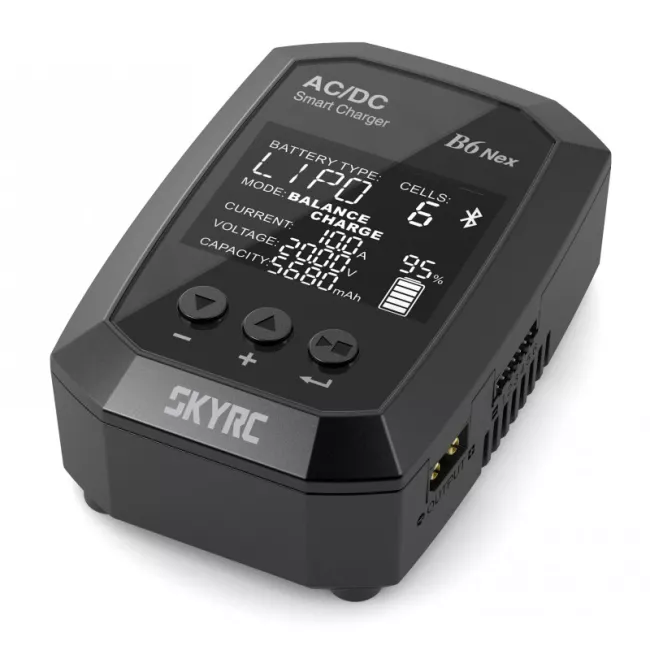

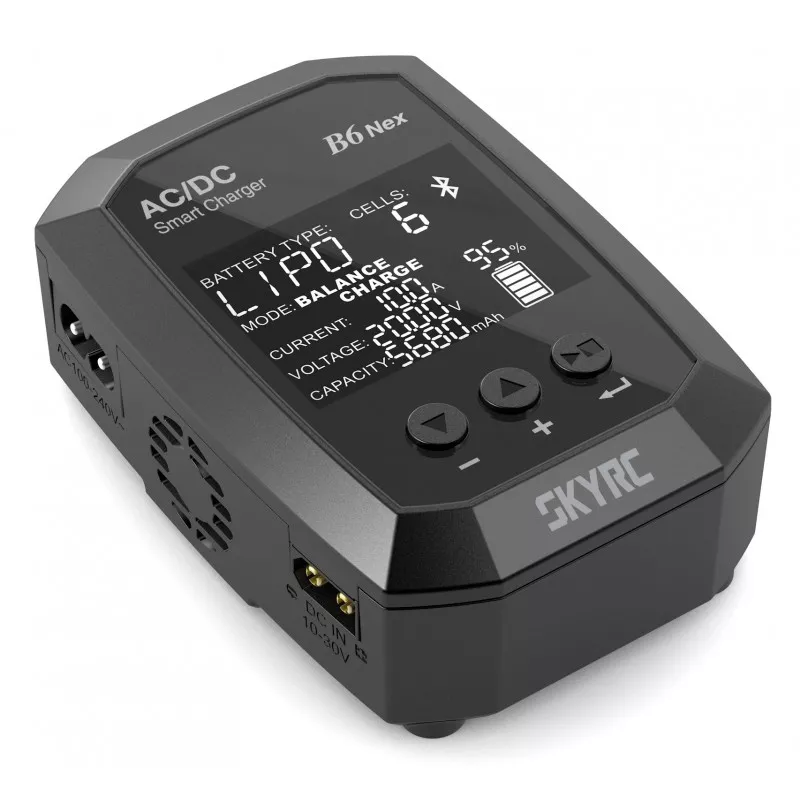

- SKYRC B6 Nex 1-6S LiPo Charger with Bluetooth With dual AC/DC power input, this charger is suitable for charging and discharging of LiFe/ Lilon/ LiPo/ LiHV/ NiMH/ NiCd/ PB batteries.
Protection is built-in such as high/low input voltage, and input/output reverse, reverse polarity protection.
- Buttons and Port:

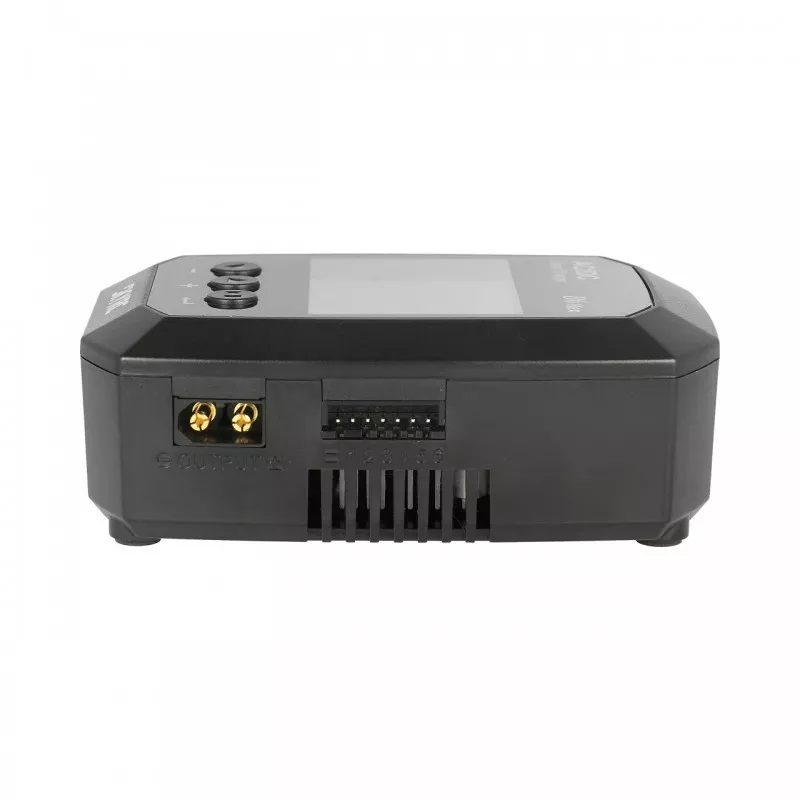

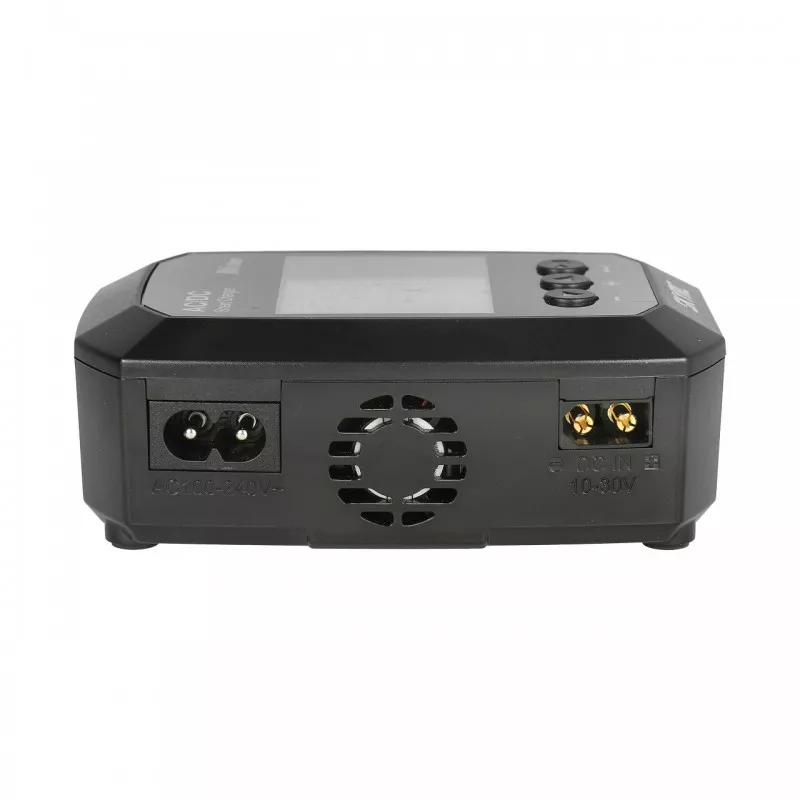

External Port: 2-6S Balance Socket-XH, Battery Socket, DC Input, AC Input
Buttons: Increase Button, Decrease Button, Start/Stop Button.
Specifications
Case Material: Plastic
Case Size: 112x75x38mm
Weight: 237.7g
Buttons And Port External Port: 2-6S Balance Socket-XH,Battery Socket, DC Input, AC Input
Buttons: Increase Button, Decrease Button, Start/Stop Button
DC Input : 10-30V
Charge: 200W
Discharge: 10W
AC Input: 100-240V(50-60HZ)
Charge: 50W
Discharge: 10W
BatteryTypes/Cells:LiPo/LiIon/LiFe/LiHV: 1-6cells;NiMH/NiCd: 1-15cells;Pb: 1-10S(2-20V)
Battery Capacity Range:NiMH/NiCd: 100-50000mAh;LiPo/LiIon/LiFe/LiHV: 100-50000mAh;Pb: 100-50000mAh
Charge Voltage:NiMH/NiCd: Delta peak detection;LiPo: 4.18-4.25V/cell;LiFe: 3.58-3.7V/cell;Pb: 2.4V/cell;LiIon: 4.08-4.2V/cell;LiHV: 4.25-4.35V/cell;AGM/COLD: 2.45V/cell
Discharge Cut-off Voltage
NiMH/NiCd:0.1-1.1V/cell
LiPo: 3.0-3.3V/cell
LiFe: 2.6-2.9V/cell
Pb: 1.8V/cell
LiIon: 2.9-3.2V/cell
LiHV: 3.1-3.4V/cell
Charge Current: 0.1A-10.0A
Discharge Current: 0.1A-2.0ABalance Cells: 1-6 cellsBalance Current: 1000mA/cell MaxSafety Timer: 1-720minutes off
Charge Method:CC/CV for lithium types and lead(Pb) batteries Delta-peak Sensitivity for NiMH/NiCd.
